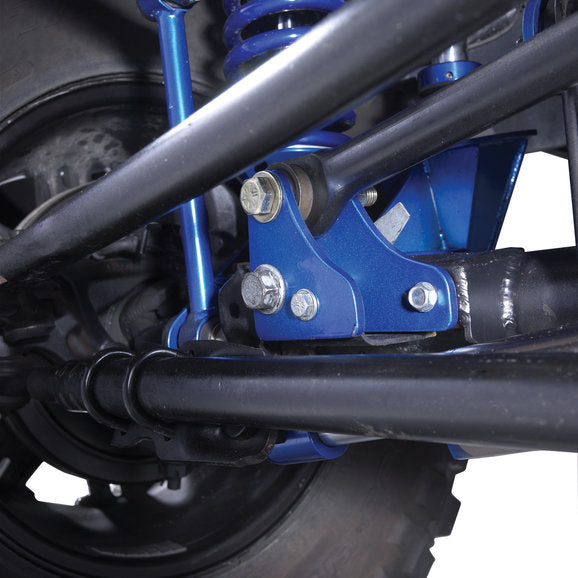

0718 JEEP WRANGLER JK 4WD 5 IN CRAWLER SYSTEM COMPONENT BOX 2

The FTS24084BK is part of a 5-inch Crawler system designed for aggressive off-road use, allowing for 37-inch tall tires. The front system converts factory 4-link arms to a Radius Arm design, with adjustable Radius Arm links made of 5/16-inch thick steel and rotational urethane joints for articulation. These arms mount to a 1/4-inch thick steel crossmember under the transmission. The kit includes front and rear driveshafts for a complete installation. Front steering geometry is relocated using a dropped pitman arm and a Trac Bar relocation bracket. Lift is achieved with replacement coil springs or a Coilover Conversion system. The rear system retains the factory 5-link design with extended length lower tubular arms that bolt to new side frame brackets (no gas tank removal or welding required). Upper links are also replaced with tubular style. Both upper and lower links feature 5/16-inch thick wall links with adjustable rotational urethane ends. The rear Trac Bar is relocated for proper axle tracking. Replacement shock mounts are provided for increased ground clearance at the rear axle.
