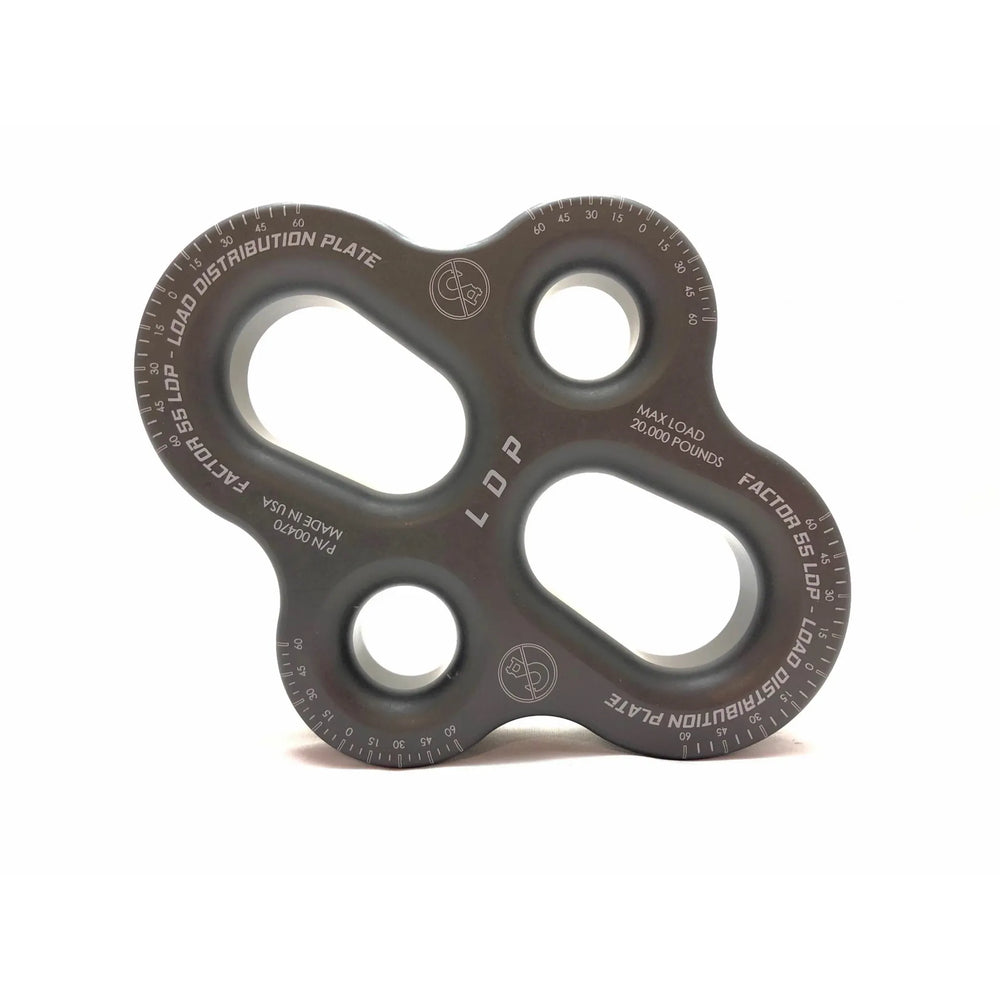

Load Distribution Plate-Gray Factor 55

Part #: 00470-06

Rigging plate designed for distribution of multiple loads and directions. Safe collection point for multiple winching applications. Prevents collecting multiple loads on a single shackle. Self-aligning shackle pin holes fit common 3/4 inch shackles. Pear shaped holes permit 3/4 inch and 7/8 inch shackle bodies to pass through.Laser engraved angle scale for sling multiplier estimates. Symmetric shape allows for common bridle tow configurations. Large smooth corner radii for soft shackle applications. Precision machined from 6000 series Military Grade Aluminum. Engineered, Tested, and Made In The USA. Military Specification Hard Anodized finish (Mil-A-8625 F Type III Gray). Working Load Limit 20,000 pounds. Minimum Breaking Strength 42,000 pounds.Features:Load Distribution Plate-GrayRigging plate designed for distribution of multiple loads and directionsSafe collection point for multiple winching applicationsPrevents collecting multiple loads on a single shackleSelf-aligning shackle pin holes fit common 3/4 shacklesPear shaped holes permit 3/4 and 7/8 shackle bodies to pass throughLaser engraved angle scale for sling multiplier estimatesSymmetric shape allows for common bridle tow configurationsLarge smooth corner radii for soft shackle applicationsPrecision machined from 6000 series Military Grade AluminumEngineered, Tested, and Made In The USAMilitary Specification Hard Anodized finish (Mil-A-8625 F Type III Gray)Working Load Limit 20,000 poundsMinimum Breaking Strength 42,000 poundsWeight-26 ounces

Features:

• Symmetric shape allows for common bridle tow configurations, Self-aligning shackle pin holes fit common ? shackles, Pear shaped holes permit ? and 7/8 shackle bodies to pass through
• Precision machined from 6000 series Military Grade Aluminum, Military Specification Hard Anodized finish ( Mil-A-8625 F Type III Gray)
• Working Load Limit 20,000 pounds; Minimum Breaking Strength 42,000 pounds
• Laser engraved angle scale for sling multiplier estimates
• Large smooth corner radii for soft shackle applications
• Engineered, Tested, and Made In The USA
• Limited 1 Year Warranty

The Load Distribution Plate, LDP is a rigging plate designed for distribution of multiple loads and directions. Self-aligning shackle pin holes fit common ? shackles. Pear shaped holes permit ? and 7/8 shackle bodies to pass through.
