Engines and Components› Pistons and Piston Rings

Bartek

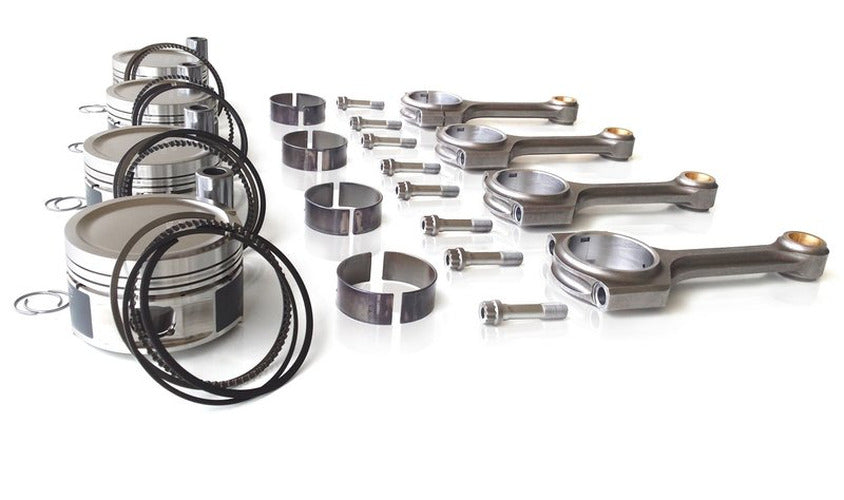

1.8T 20V Forged Piston and Steel Connecting Rod Set

$1,096.51

SKU: 2218t14M.4

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $200
$100 Minimum Order
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Advanced — 4+ hours

Overview

The Bartek 1.8T 20V forged piston and steel connecting rod set is a performance upgrade for 1.8T 20V engines. The pistons are extremely light and reinforced, with a coated skirt to reduce friction. Piston pins, rings, and clips are included.
Show original supplier description
The Bartek 1.8T 20V forged piston and steel connecting rod set is a meticulously matched component package designed for extreme performance in 1.8T 20V engines. This set features WISECO forged pistons, known for their extreme performance capabilities, and BAR-TEK® X-shaft steel connecting rods, engineered to distribute and reduce extreme forces for enhanced stability and light weight (599 grams per rod). Together, these components are capable of supporting up to 650 hp, with the connecting rods alone rated for up to 1000 hp. The WISECO pistons are constructed from a special alloy, making them extremely light and reinforced for maximum performance. They feature a coated piston skirt to reduce friction and come complete with piston pins, rings, and clips. Available bore sizes include 81.00 mm, 81.50 mm, and 82.00 mm, all with a compression ratio of 8.5:1 when used with a 1.65 mm cylinder head gasket. ACL racing, coated connecting rod bearings with an extra bore for piston pin lubrication are also part of this comprehensive kit. This set is suitable for 1.8T 20V engines found in vehicles such as the Golf 4, Audi TT, and Seat Leon. The pistons feature an ArmorPlating option for maximum durability, applied to the piston crown, ring grooves, and pin bores, providing a low coefficient of friction, protection against burning through piston rings, and resistance to detonation. Installation and drilling dimensions are included with the piston set.
Vehicle Symptoms
  • Rod knock under heavy acceleration
  • Engine misfire at high boost levels
  • Excessive oil consumption after tune
  • Loss of power above 5000 RPM
  • Piston slap on cold start
Diagnostic Codes
  • P0300 – Random or multiple cylinder misfire
  • P0301 – Cylinder 1 misfire Detected
  • P0302 – Cylinder 2 misfire Detected
  • P0303 – Cylinder 3 misfire Detected
  • P0304 – Cylinder 4 misfire Detected
Relevant Conversations
  • 1.8T 20V forged piston and rod set for high horsepower build
  • 1.8T connecting rod upgrade – best rods for 650hp
  • WISECO vs JE pistons 1.8T – which is better?
  • 1.8T rod knock – replace with forged rods?
  • 1.8T P0300 after tune – possible piston/rod failure?
  • 1.8T engine rebuild kit – pistons and rods included?
  • Bartek 1.8T rods review – any experience?
  • 1.8T forged rods install time – one day job?
  • Co-purchase: ARP head studs for 1.8T forged build
  • 1.8T 20V performance build list – pistons, rods, turbo

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandBartek
Part Number2218t14M.4
