1-Channel Class D DSP Subwoofer Amplifier

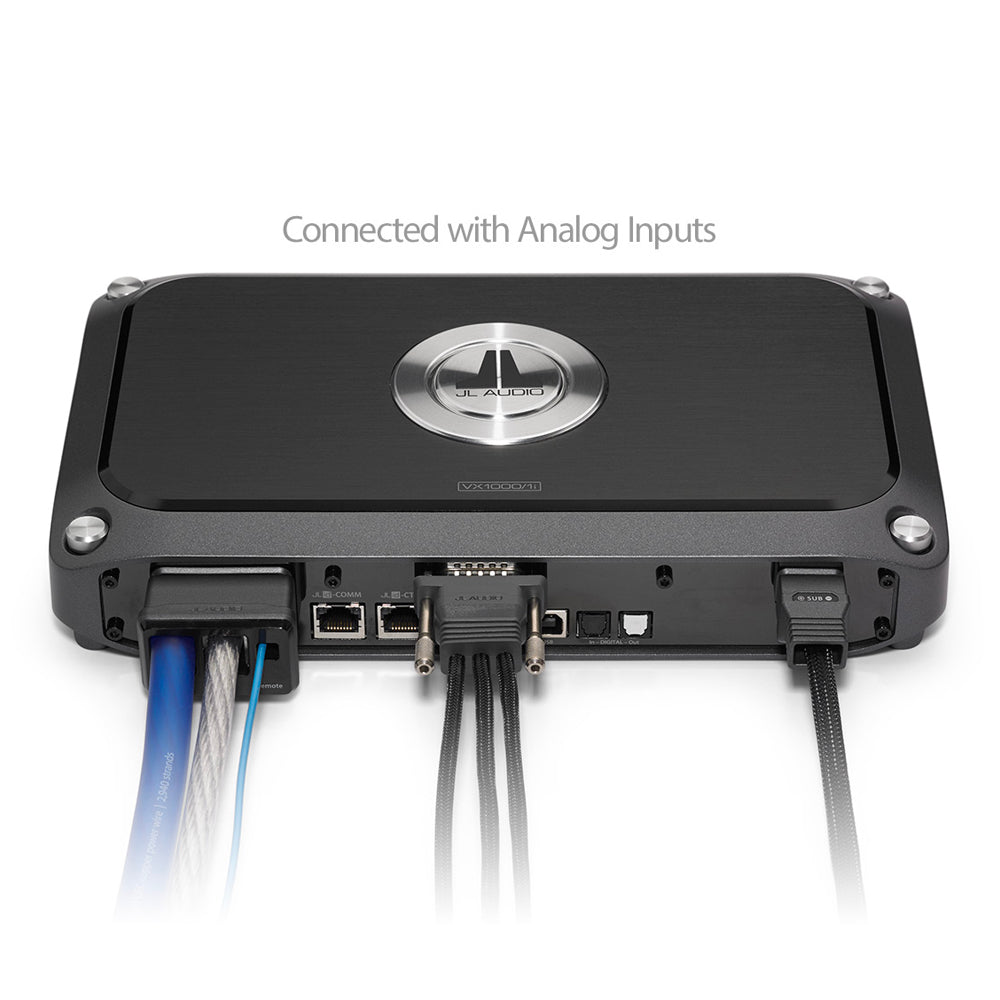

The JL Audio VX1000/1i is a 1-channel Class D DSP amplifier designed for subwoofers. It utilizes NexD2™ switching amplifier technology to deliver 600 watts RMS at 4 ohms and 1000 watts RMS at 2 ohms at 14.4V. This amplifier integrates a digital signal processor for finely tuned audio settings and features a compact design for easier installation.

Key specifications include a frequency response of 12 Hz to 500 Hz, an S/N ratio of 87 dB, and a damping factor greater than 400 at 4 ohms. The amplifier measures 54 mm in height, 287 mm in width, and 168 mm in depth, with a net weight of 2.95 kg. It comes with a power connection for 4 AWG wire, an analog input/pre-out harness, a subwoofer output connector, and a 1.8m USB A/B cable.
