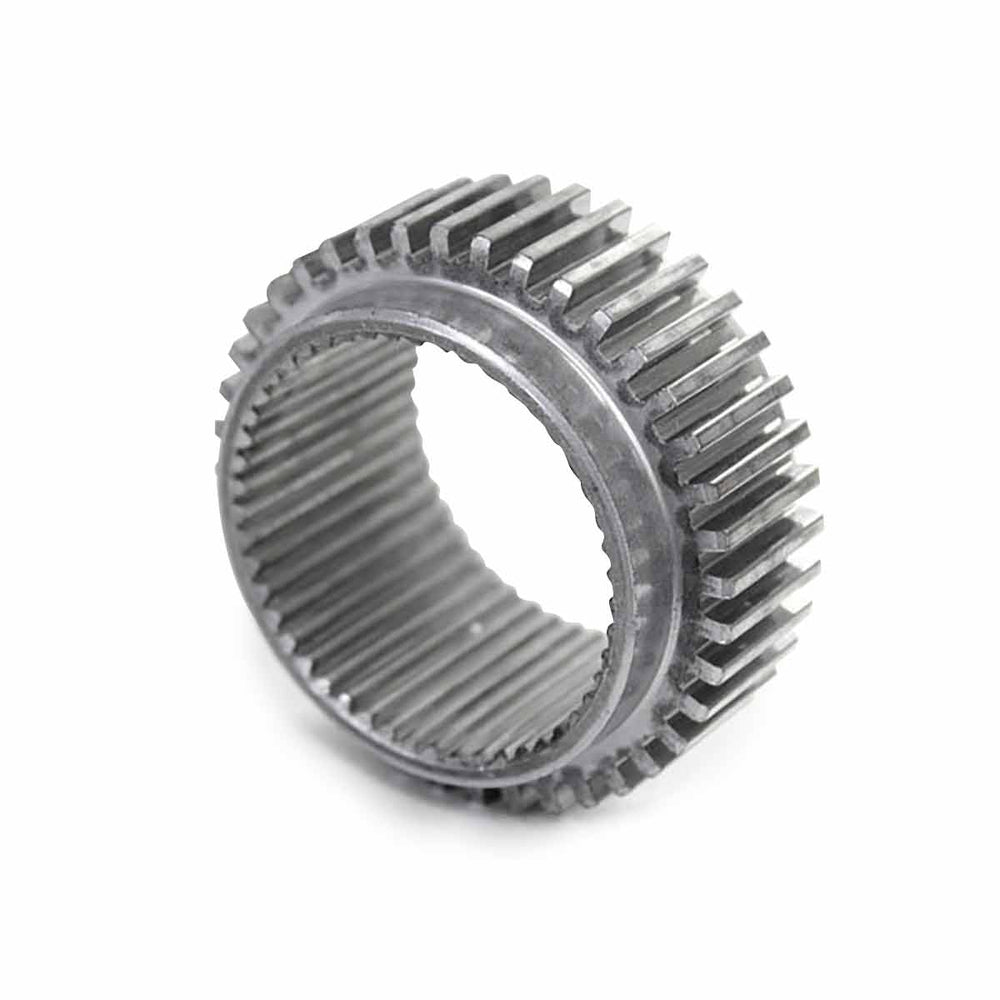

~(1 lbs. 7X6X3)~ B24 Speedometer Tone Wheel 49 Spline 261HD /261XHD /263HD /263 XHD

$44.34

SKU: M01D 25902

In Stock
In Stock
Ships by Jun 20
Free Shipping
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Description

The Merchant Automotive Transfer Case Speedometer Tone Wheel is a replacement rear output speed sensor tone wheel designed for GM transfer cases with a 49-spline mainshaft. It is compatible with NP261HD, NP263HD, NP261XHD, and NP263XHD transfer cases.

This component interacts with the speed sensor's magnetic pickup to generate signals for accurate vehicle speed indication on the speedometer. A faulty tone wheel can disrupt this signal, potentially causing the transmission to enter "limp" mode as a protective measure.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandMerchant Automotive
Part NumberM01D 25902
