1-Ohm Stable 5000W Class-D Monoblock Amplifier

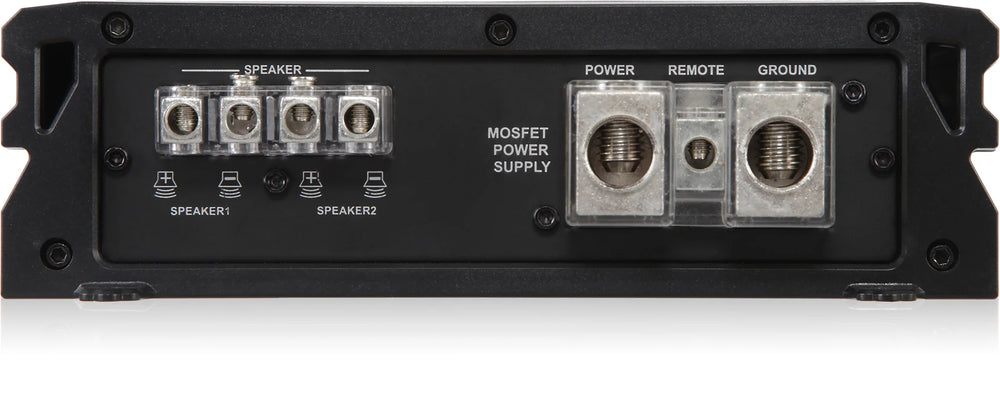

The Belva BB5000Dv2 is a high-output Class-D monoblock amplifier engineered to power your car's sound system with significant audio fidelity. This amplifier boasts a 1-ohm stable design, delivering robust power across various impedance loads. Its RMS power output is rated at 1200 watts x 1 channel at 4 ohms, 1800 watts x 1 channel at 2 ohms, and an impressive 3000 watts x 1 channel at 1 ohm, with a peak power output reaching 5000 watts. Built with a Pulse Width Modulated MOSFET power supply for efficient energy conversion, the BB5000Dv2 includes a wired remote bass level control for on-the-fly adjustments and LED indicators for power and protection status. It features a heavy-duty aluminum alloy heat sink to manage thermal loads effectively. The amplifier also offers preamp RCA outputs, allowing for seamless integration and expansion by daisy-chaining multiple units. Comprehensive 3-way protection circuitry safeguards against thermal issues, overloads, and speaker shorts, ensuring longevity and reliability. For tuning and customization, the BB5000Dv2 includes a variable bass boost feature (0 to +12 dB adjustable between 30-80 Hz), a variable low-pass filter ranging from 40-180 Hz with a 12 dB/octave slope, and a subsonic filter adjustable from 20Hz to 50 Hz with a 12 dB slope. Its frequency response spans from 20 Hz to 30,000 Hz, ensuring a wide range of sound reproduction. The unit requires 1/0 gauge power and ground wiring for installation and comes with a 300 Amp ANL fuse and holder.
