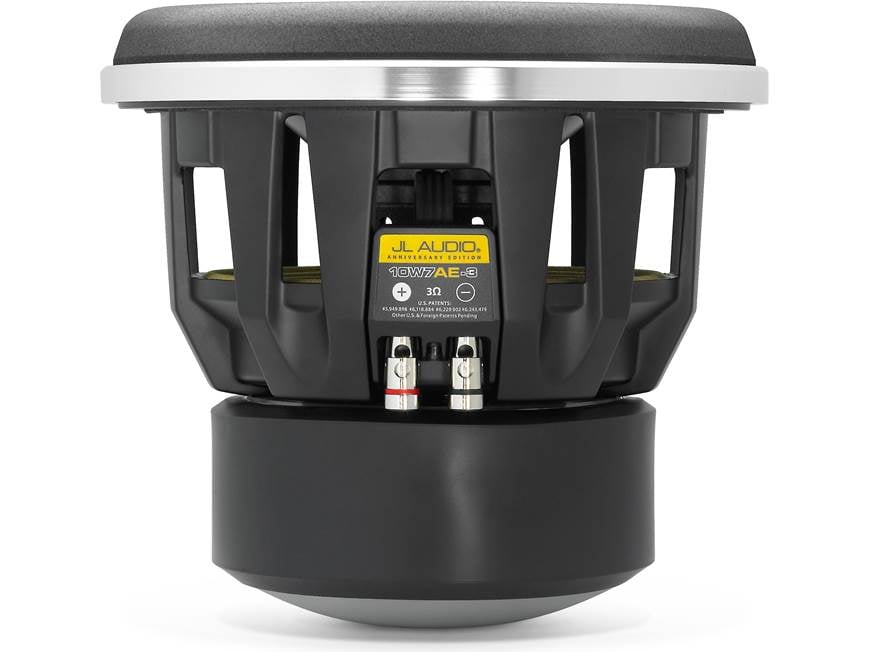

10-Inch Anniversary Edition Subwoofer Driver

The JL Audio 10W7AE-3 is a 10-inch subwoofer driver that offers reference-grade sub-bass performance, building on the W7 design with extended excursion capabilities. This Anniversary Edition (AE) model features distinct cosmetic elements such as satin-black powdercoated baskets, a bright anodized surround clamp ring, and special Anniversary Edition badges and labels, while maintaining the original W7's functionality. This subwoofer is engineered for high output and accuracy, capable of handling 750W RMS continuously and recommended for amplifiers in the 300W to 750W range. It is designed to operate optimally in either a 1.25 cu. ft. (35.4 L) sealed enclosure or a 1.5 cu. ft. (42.5 L) ported enclosure. Detailed enclosure recommendations are provided in the product specifications, with specific parameters for sealed and ported designs, including required wall and baffle thickness, internal volume, and tuning frequencies. Installation considerations include a required minimum distance of 0.75 inches (19 mm) between the back of the speaker and the enclosure wall to ensure proper operation of the pole vent, which is critical for heat and pressure management. Furthermore, the manufacturer emphasizes that the completed subwoofer enclosure must be mounted firmly to the vehicle using heavy steel bolts (0.5-inch diameter) and large steel washers to prevent occupant injury during sudden decelerations or collisions. Optional accessories, such as the JL Audio SGR-10W7 grille, are available separately to protect the subwoofer. The 10W7AE-3 has a nominal impedance of 3 ohms and a sensitivity of 84.3 dB (1W/1m).
