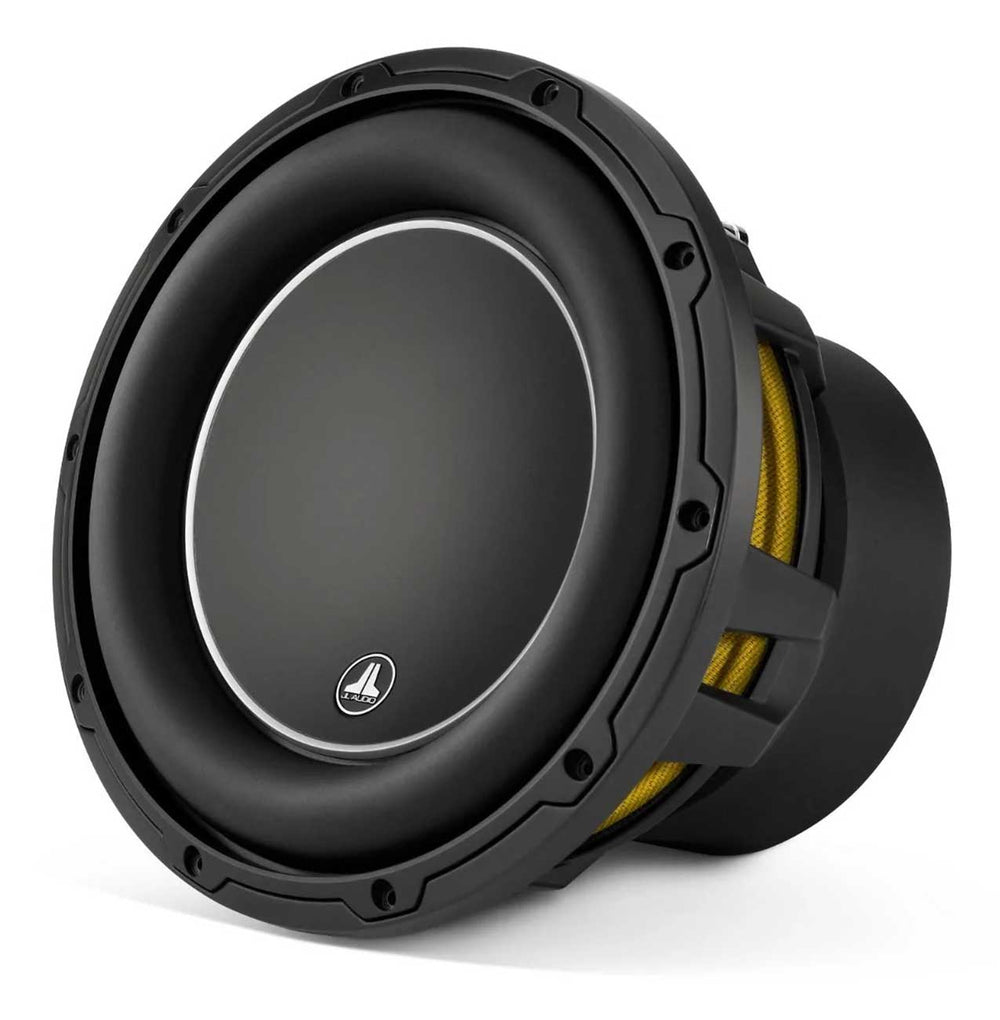

10W6v3-D4 10-Inch Dual 4-Ohm Voice Coil Subwoofer

The JL Audio 10W6v3-D4 is a 10-inch subwoofer driver engineered for exceptional sub-bass performance, particularly in space-constrained applications. It incorporates advanced technologies found in JL Audio's flagship W7AE subwoofers, contributing to superior motor linearity and suspension dynamics. An integrated, efficient cooling system further enhances performance by minimizing distortion and maintaining outstanding dynamic balance. This subwoofer driver boasts a continuous power handling of 600W RMS and is recommended for amplifiers in the 200W-600W RMS range. It is optimized for either a sealed enclosure requiring a net internal volume of 0.55 cu. ft. (15.6 L) or a ported enclosure needing 0.75 cu. ft. (21.2 L). The 10W6v3-D4 provides increased excursion capability and power handling compared to its predecessor, the 10W3v3, enabling higher output levels. Its dual 4-ohm voice coils offer flexibility, allowing it to be wired for either a 2-ohm or 8-ohm system impedance. Construction highlights include a mineral-filled polypropylene cone for strength and responsiveness, and a robust cast-alloy basket. The physical specifications indicate a nominal diameter of 10.0 inches (250 mm), with an overall diameter of 10.5 inches (267 mm) and a mounting depth of 6.89 inches (175 mm). The driver itself displaces 0.078 cu. ft. (2.1 L) and weighs 20 lbs (9.1 kg). For optimal performance, JL Audio recommends bi-amplification with quality satellite speakers and amplifiers, and advises against using passive crossovers which can negatively impact sound reproduction. The enclosure design requires a minimum of 0.5 inches (13 mm) clearance from the rear of the speaker to the enclosure wall for proper pole vent operation. When installing the enclosure, it is crucial to secure it firmly to the vehicle's frame or floorpan to prevent it from becoming a projectile in the event of a collision.
