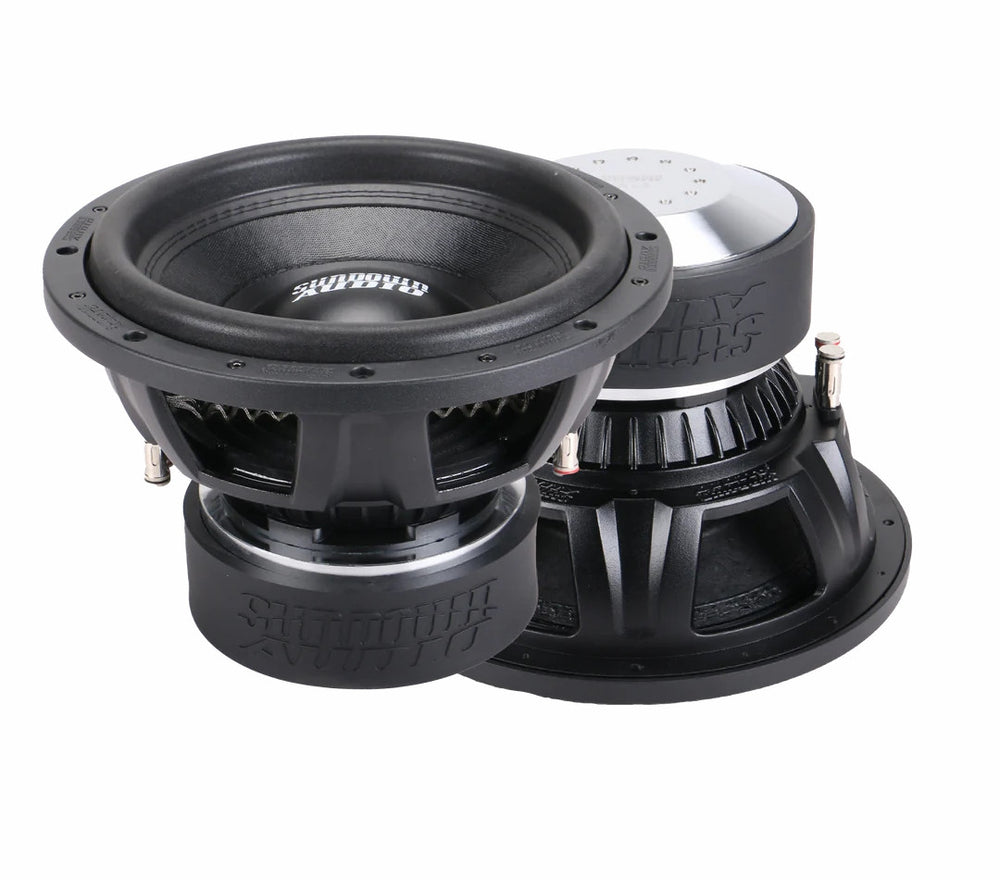

12-Inch Dual 2 or 4 Ohm Voice Coil Subwoofer

The Sundown Audio SA-12 v.3 is a 12-inch subwoofer built to deliver robust and impactful bass. This subwoofer is engineered with a dual 2 or 4 ohm voice coil system, offering flexibility in system configuration. It boasts a substantial power handling capability, rated at 1250 watts RMS and capable of handling up to 3000 watts at peak power. Key specifications for the SA-12 v.3 include a resonance frequency (Fs) of 35 Hz and a sensitivity of 84.05 dB at 1w/1m. It offers an Xmax of 22mm, contributing to its deep bass output. For enclosure recommendations, a sealed enclosure of 1.0 cubic feet or a ported enclosure of 1.75 cubic feet is suggested, with a recommended tuning frequency of 35Hz and a port area of 26 square inches. Installation considerations include a mounting depth of 8.4 inches, an outside diameter of 12.84 inches, and a cut-out diameter of 11.2 inches. The subwoofer has a displacement of 0.18 cubic feet.
