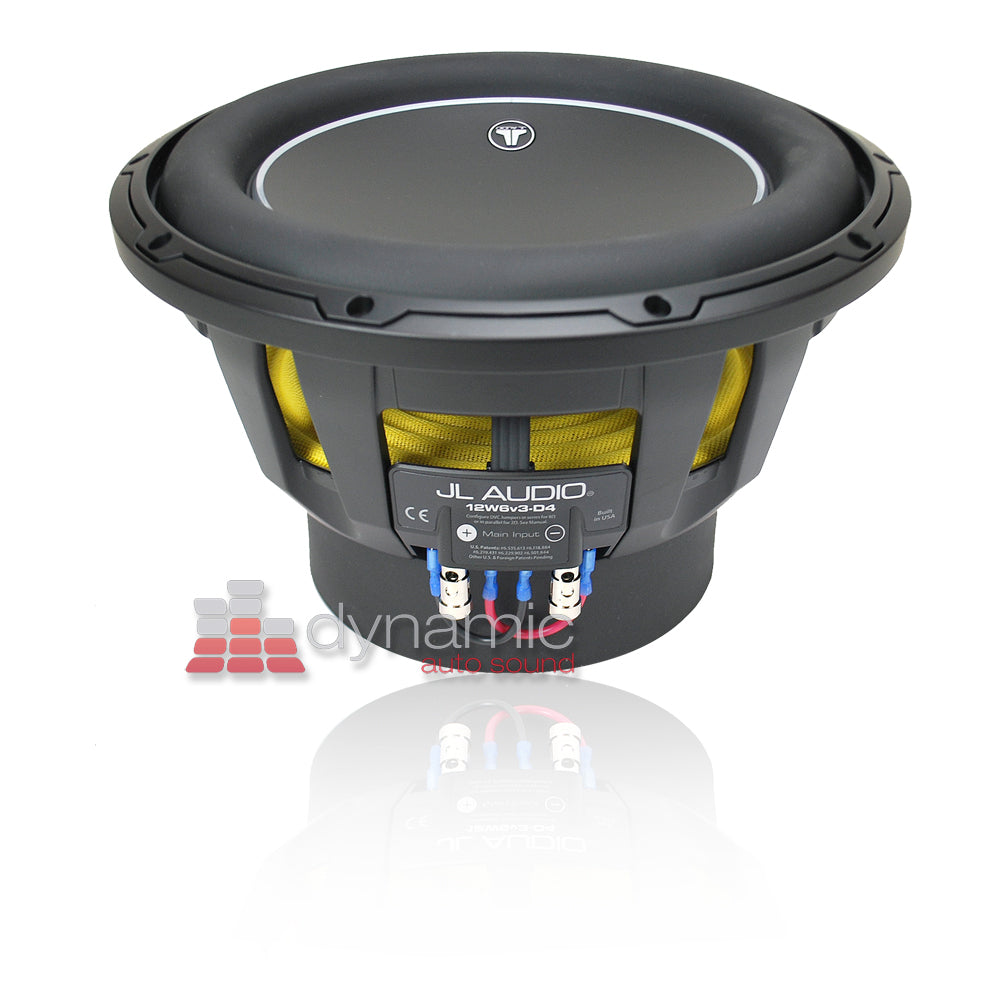

12-Inch Dual 4 Ohm Subwoofer Driver

The JL Audio 12W6v3-D4 is a 12-inch subwoofer driver engineered to deliver intensely powerful sub-bass while maintaining exceptional sound quality. It incorporates advanced technologies found in JL Audio's flagship W7AE subwoofers, contributing to superior motor linearity and suspension behavior. An efficient cooling circuit further enhances performance by reducing distortion and ensuring outstanding dynamic balance. This subwoofer driver is rated for 600W RMS continuous power handling and is recommended for use with amplifiers in the 200W - 600W range. It is optimized for both sealed and ported enclosures. For a sealed setup, a minimum net internal volume of 1.0 cu. ft. (28.3 L) is recommended, while a ported enclosure should have a net internal volume of 1.3 cu. ft. (36.8 L). The 12W6v3-D4 boasts greater excursion capability and higher power handling compared to its predecessor, the 12W3v3, enabling higher output. Its dual 4 Ω voice coils offer flexibility, allowing it to be wired as either a 2 Ω or 8 Ω driver. Detailed enclosure specifications are available, with recommendations for both sealed and ported designs. For sealed enclosures, a wall thickness of 0.75 inches (19 mm) and a front baffle thickness of 0.75 inches (19 mm) are assumed for the provided external dimensions. The recommended sealed enclosure volume is 1.0 cu. ft. (28.3 L), resulting in an F3 of 41.62 Hz. For ported enclosures, the same material thickness is assumed, with a net internal volume of 1.3 cu. ft. (36.8 L) and a tuning frequency (Fb) of 33 Hz, yielding an F3 of 31 Hz. It is crucial to maintain a minimum distance of 0.5 inches (13 mm) between the rear of the speaker and any enclosure wall to ensure proper operation of the pole vent. Installation requires securing the enclosure firmly to the vehicle's structure to prevent it from becoming a projectile in the event of a collision, particularly in vehicles like hatchbacks, station wagons, SUVs, or vans.
