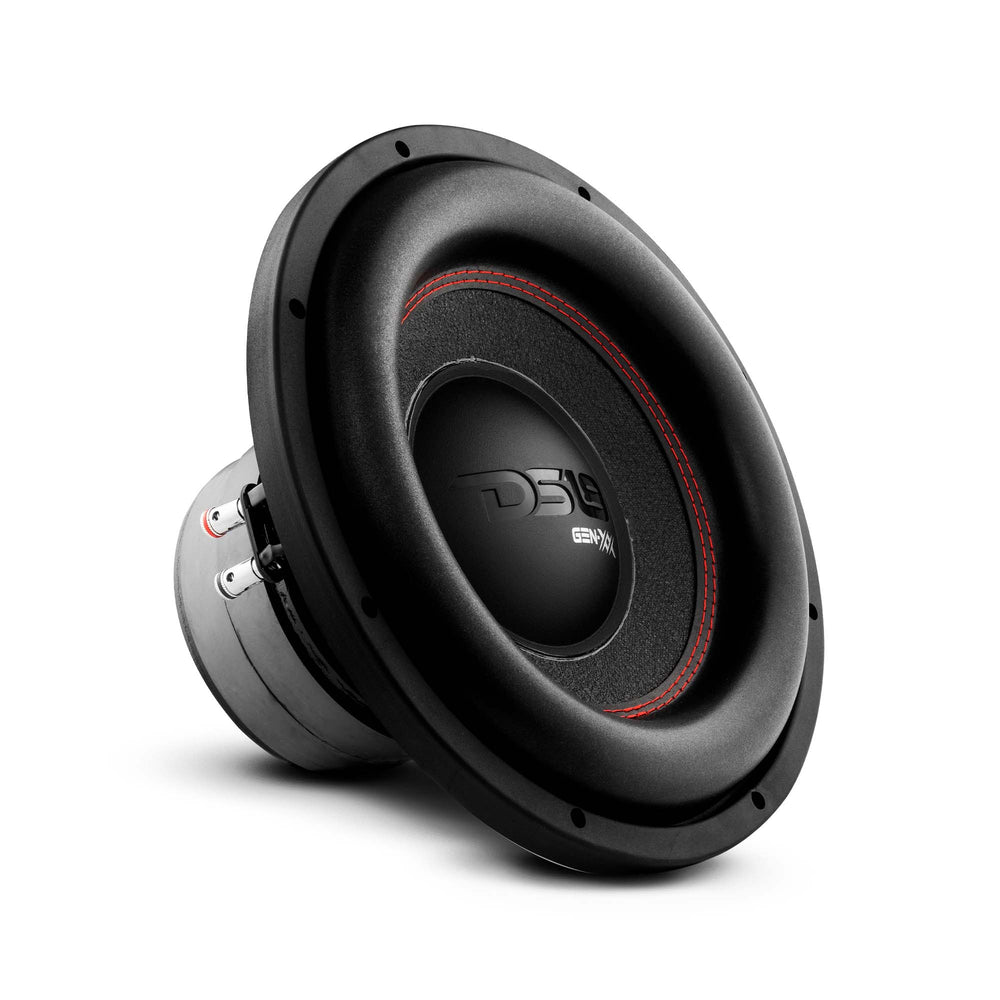

12-Inch Subwoofer

The DS18 GEN-XX12.4DHE is a 12-inch high excursion subwoofer engineered to deliver deep, rich low-end response at an accessible price point. This subwoofer aims to provide enthusiasts with concert-quality deep bass performance within their vehicle. Constructed with a 2-inch black aluminum voice coil former, paper cone, and foam surround, the GEN-XX12.4DHE is built for both performance and longevity. It boasts a robust power handling capability with 600W RMS and a peak of 1200W MAX, ensuring substantial output without demanding excessive power. The subwoofer's glossy red steel basket not only enhances its aesthetic appeal but also provides critical structural support for its 136 oz ferrite double magnet motor. With a low free air resonance (Fs) of 30.5 Hz and a broad frequency response ranging from 20Hz to 1.5kHz, this subwoofer is capable of reproducing deep, impactful bass frequencies. The dual 4-ohm voice coils offer flexibility in wiring configurations to match various amplifier setups. Key specifications include a sensitivity of 86.7dB, a recommended low-pass crossover of 80Hz, and a 2-inch voice coil diameter. The overall dimensions are approximately 12.44 inches in diameter, with a mounting depth of 6.5 inches, making it a viable option for many vehicle installations.
