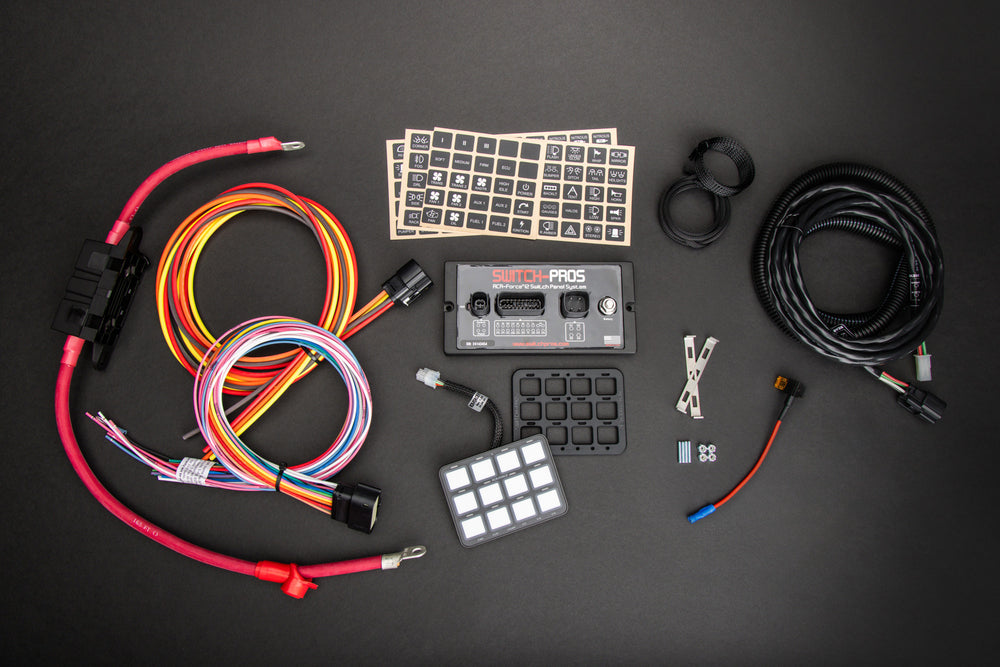

12-Switch Panel Power System

The Switch-Pros RCR-FORCE-12 is an advanced switch panel power system that replaces traditional relay boxes with a sophisticated, solid-state solution for managing numerous vehicle accessories. This system is engineered with a 150-amp capacity power module and offers 17 individual outputs, with specific ratings for high in-rush circuits (4 @ 35A, 1 @ 30A) and general use (11 @ 15A), plus a 2A low-side driver. The RCR-FORCE-12 features a compact, splash-proof switch panel with a RCR-TOUCH™ cover designed for easy operation, even with gloves or in rough terrain. The panel boasts RGB backlighting with unlimited color options and a polycarbonate overlay faceplate. The power module is waterproof, solid-state, and rated for under-hood temperatures from -40°C to 125°C. Programming options are extensive, allowing for custom configurations such as preset dimming with memory, master mode control for simultaneous operation of multiple outputs, and the ability for each master switch to manage up to four other outputs. The system supports various logic modes including On-On-Off, On/Off, or momentary functions, as well as flash/strobe effects and time delay off. Connectivity is enhanced with a built-in Bluetooth module, enabling full system control and accessory management via a free iOS and Android app. The system also includes three external trigger inputs that can activate up to four outputs each. For ease of installation and troubleshooting, it comes with 11 feet of communication cable, a 150A inline circuit protection power cable, 100 user-selectable legends, installation brackets, and color-coded output wires. Up to three Switch Panels can be daisy-chained to a single power module, and it features a sleep mode for minimal power consumption.
