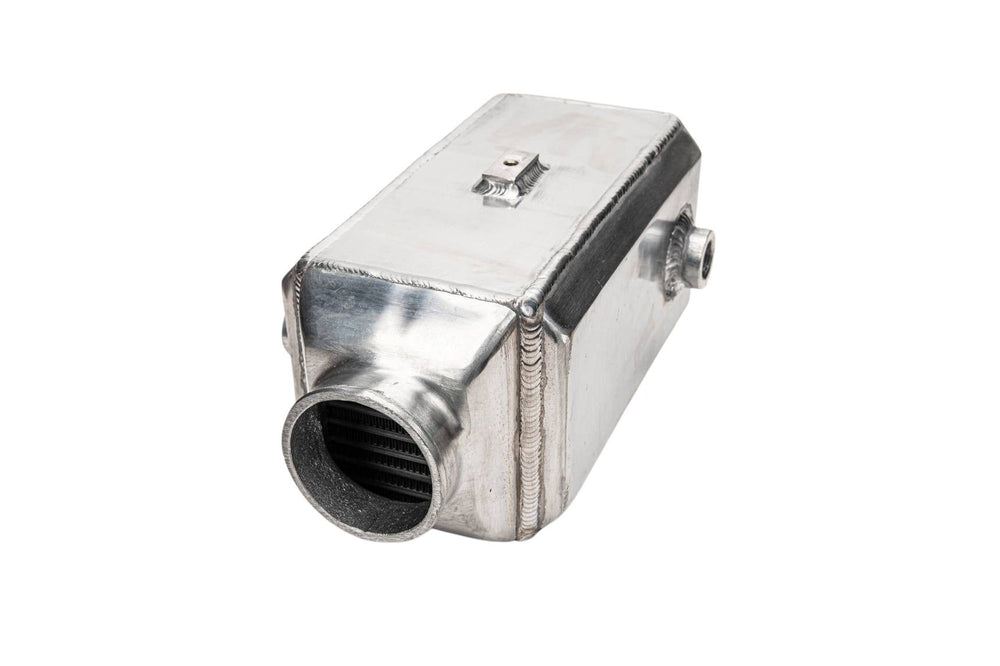

1200 HP Intercooler with 3.5" Inlet/Outlet

Unlike many intercoolers that cause intake air to change direction twice, this "Long Flow" design maintains a straight path, allowing your turbo to operate more efficiently and potentially delivering more power. This design minimizes restriction, contributing to its exceptionally low pressure drop. Constructed entirely from lightweight aluminum with no epoxy used in the core, this intercooler boasts a fin pitch of 21 fins per inch, with a detailed breakdown of 12.5 fins/inch on the air side and 8.5 fins/inch on the water side. It is rated for demanding applications, recommended for up to 1200 CFM and 1200 HP, while maintaining a pressure drop of less than 0.2 PSI. The unit features a 3.5" air inlet and outlet, and a 3/4" NPT water inlet and outlet, designed to withstand a maximum water/air pressure of 70 PSI. The core itself measures 10.5"x6"x5", with end tanks contributing to the overall dimensions. FrozenBoost ensures a genuine water-to-air core design, where water passages are significantly smaller than air passages, which is crucial for achieving the compact size and low pressure drop characteristic of efficient water-to-air intercoolers. They also note that their units come with NPT threads for the water inlet and outlet, which are more readily available in the United States than BPT fittings. It's important to note that a complete liquid-to-air intercooler system requires additional components such as a water pump, a heat exchanger (radiator), and potentially a reservoir. FrozenBoost offers all the necessary parts to build a comprehensive setup.
