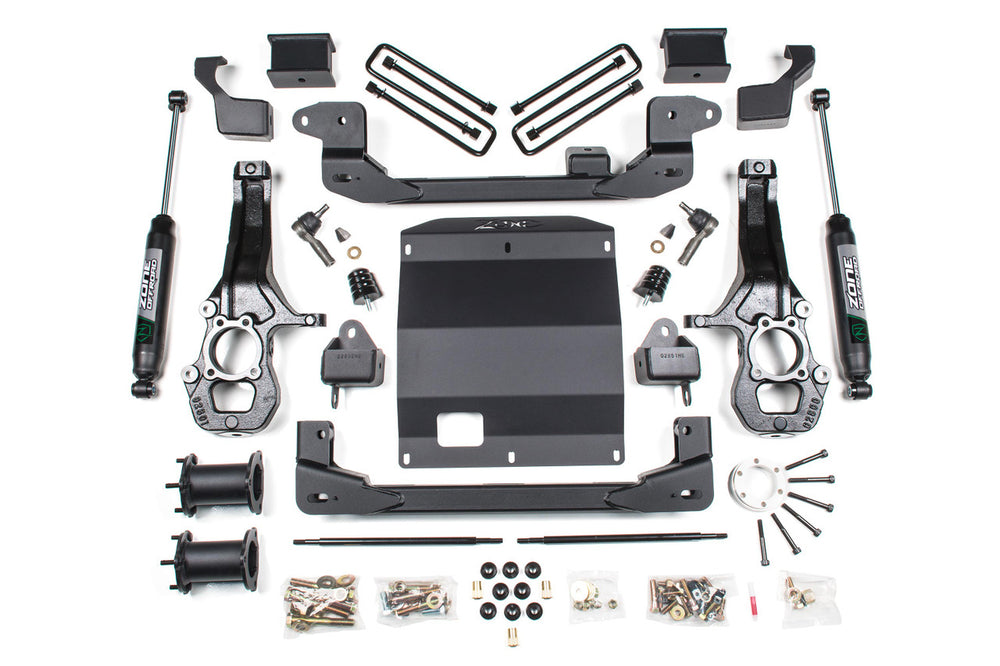

15-22 Colorado/Canyon 5.5 Inch Suspension With Nitro Shocks Zone Offroad

Part #: ZONC39N

To properly lift the Colorado/Canyon suspension 5.5 Inch, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers.Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning.A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together.Factory struts are retained and relocated with top spacers to gain a full 5.5 Inch of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel.In the rear, a new block and U-bolt kit provided 4 Inch of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.Quick Specs:Front Lift Height 5.5 InchRear Lift Height 4 InchMaterial SteelFront Lift Method Strut SpacersRear Lift Method Lift BlockLift Type Lift KitWheel Size 20 x 9Back Spacing 5.25 InchMax Tire Size 305 / 55Wheel Size 2 18 x 9Back Spacing 2 4.5 InchMax Tire Size 2 295 / 65Wheel Size 317 x 8.5Back Spacing 3 4.5 InchMax Tire Size 3 295 / 65Finish PowdercoatAccommodates Factory Wheels NoIn The Box:Differential Relocation BracketsFrame Crossmembers - Front and RearStrut Spacer - FrontRear Lift Block & U-Bolt KitSway Bar Links - FrontSkid PlateSteering KnucklesFeatures:Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.Heavy-duty differential skid slate improves offroad protection.High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.Multi-point differential relocation brackets secure front differential for improved CV operating angles.Rear lift block and longer u-bolts for easy installation and level stanceKit Components:ZON7757 Nitro- 27.90 x 16.55 x 2-3/8 EB1/EB1 2 711745595729ZONC2409 2015-2022 Colorado 4 Inch Rear Block Kit 1 711745596870ZONC2550 2015-2022 Colorado 5.5 Inch Front Box Kit 1of4 1 711745596900ZONC2551 2015-2022 Colorado 5.5 Inch Front Box Kit 2of4 1 711745596917ZONC2552 2015-2022 Colorado 5.5 Inch Front Box Kit 3of4 1 711745596924ZONC2553 2015-2022 Colorado 5.5 Inch Front Box Kit 4of4 1 711745596931ZONC2554 2015-2022 Colorado 5.5 Inch Front Spacer Box Kit 1 711745596948

Features:

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance
• Heavy-duty differential skid slate improves offroad protection
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance
• Multi-point differential relocation brackets secure front differential for improved CV operating angles
• Rear lift block and longer u-bolts for easy installation and level stance
