Suspension and Components› Springs and Components

ATS Springs

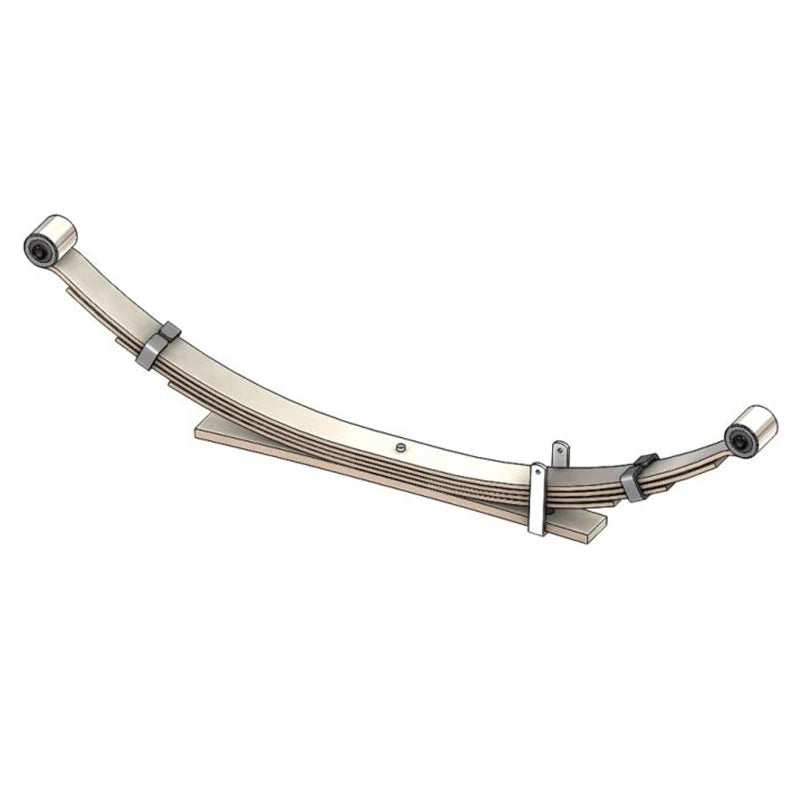

1600lb Rear Leaf Spring, 4/1 Configuration

$325.99

SKU: 22-1419HD

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $200
$100 Minimum Order
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Overview

The ATS Springs 22-1419HD is a heavy-duty rear leaf spring designed for Chevrolet Colorado and GMC Canyon models from 2004 to 2013. This replacement spring offers extra capacity, rated at 1,600 lbs per spring. It features a 4/1 spring configuration with five leaves and includes front and rear pressed-in leaf spring eye bushings.
Show original supplier description
The ATS Springs 22-1419HD is a heavy-duty rear leaf spring engineered as a direct-fit replacement for 2004-2013 Chevrolet Colorado and GMC Canyon trucks. This upgrade provides extra capacity, with each spring rated to support 1,600 lbs, making it suitable for hauling or towing heavier loads. This leaf spring features a 4/1 configuration, meaning it has five leaves in total, designed to enhance the load-carrying capabilities of your vehicle. Specific leaf grading includes two leaves at .276 inches, one at .291 inches, one at .237 inches, and one at .499 inches. The spring measures 2-1/2 inches wide with a 7-1/2 inch arch, and the short and long ends are both 26 inches in length. It has a pack thickness of 5/8 inches. Front and rear pressed-in leaf spring eye bushings are included for a complete installation.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandATS Springs
Part Number22-1419HD
CategorySuspension and Components
