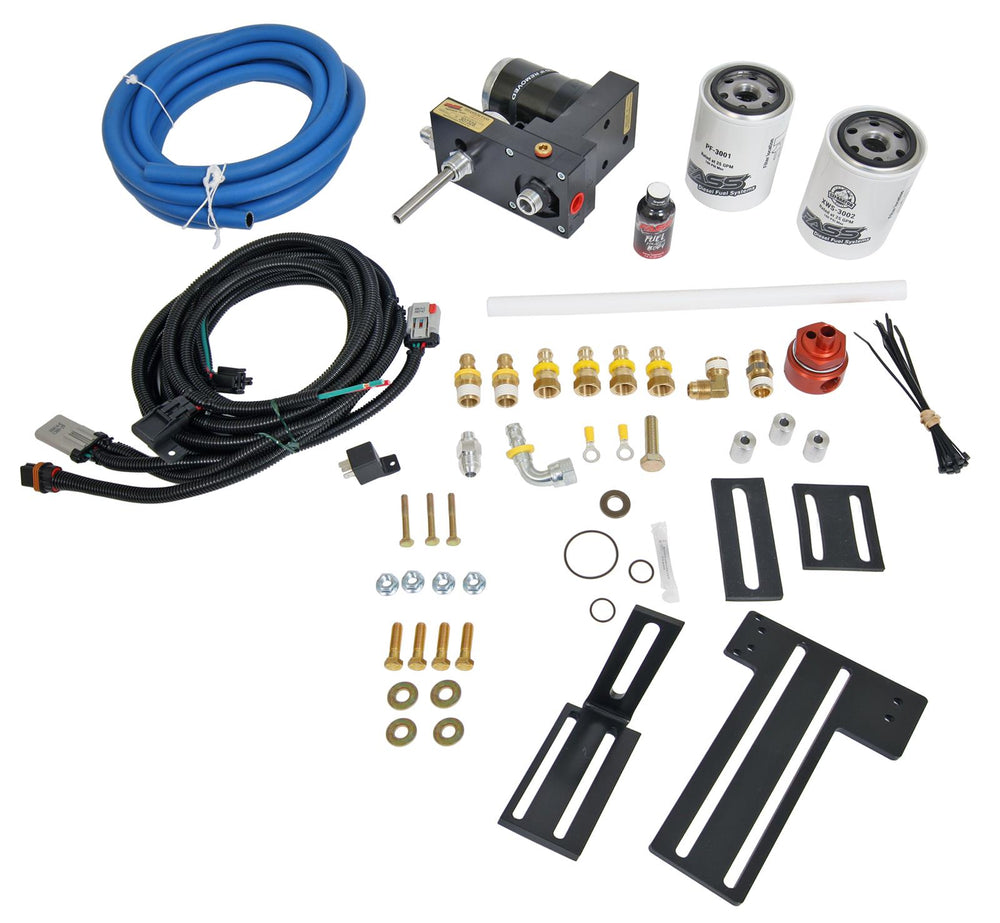

165 GPH Fuel Pump with Air/Water Separation

This unit boasts a flow rating of 165 gallons per hour and is preset to deliver 16-18 PSI of fuel pressure, making it suitable for engines ranging from 600 to 900 horsepower. It is designed to protect your injection system by effectively removing water, air, and debris from diesel fuel, with a filtration rating of 2 microns, thereby extending the life of your Bosch Injection System and injectors. This system includes two FASS BHF-1005 Bulkhead and Suction Tube Kits, machined from 6061 T-6 Billet Aluminum. These fittings serve as both suction and return tubes, allowing for direct plumbing to the fuel tank module. This design eliminates the need to cut the filler neck and significantly speeds up the installation process. The pickup tube is made of PTFE Teflon and can be cut to size for various fuel tank depths, enabling safe operation with as little as 1/8 tank of fuel. Specifically designed for 2005-2018 and 2021-2024 Dodge Ram trucks equipped with Cummins 5.9L and 6.7L diesel engines, this fuel system is crucial for both daily drivers and high-performance applications aiming to improve fuel economy or increase horsepower and torque. It features a quiet motor, a 1,000,000-mile motor warranty, and a 30,000-mile filter life expectancy. Note: Installation of this kit on a cab and chassis may require modifications.
