1724 F350/F450 POWER STROKE 4.5IN DANA M300 AXLE TRACTION BAR BRACKETS & HARDWA

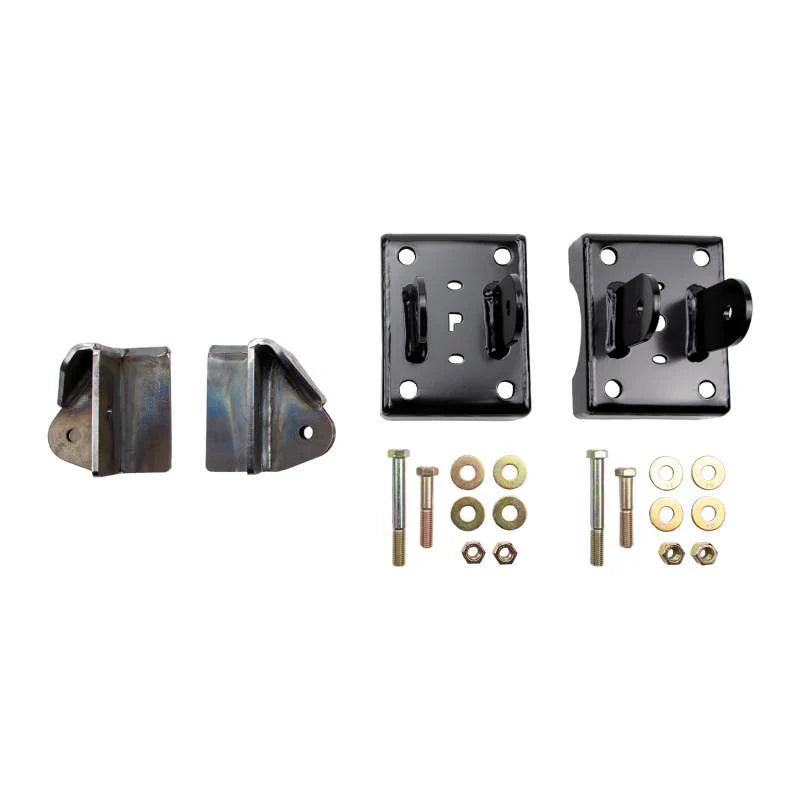

Built in-house at WCFab, these traction bar brackets are designed specifically for use on the Dana M300 rear axle option commonly found on 2017 and newer F-350 and F-450 Dually (DRW) trucks, which features a 4.5" diameter tube. These brackets bolt on to the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end. Grade 8 hardware connects the bars to the mounts on the frame and axle. This is a replacement hardware/install kit; bars are not included. It is designed to be paired with WCFab bar sets WCF100837 or WCF100839 for a complete traction bar kit. The axle side mounts have a powder coating with a zinc primer base coat.
