18C WRANGLER JL 2DR 3.5IN X FACTOR NO LIMITS COIL OVER SYS W/ FAST CD ADJUSTE

The Rock Krawler 3.5" X-Factor COILOVER Mid-Arm System is engineered for Sport and Sahara owners seeking a complete, bolt-in system with superior articulation. The "No-Limits" designation signifies the inclusion of front sway bar links compatible with the factory electronic sway bar disconnect feature found in Rubicon Wranglers. The X-Factor Series adjustable upper and lower control arms, combined with Pro-X Krawler Joints and Adventure Series joints, offer 95 degrees of misalignment, significantly reducing bind inherent in factory JL control arms. This system allows for precision tuning of caster and pinion angles front and rear. Front and rear track bar geometry corrections ensure perfectly centered axles for optimal on-road handling. The Comp System (Front Coilovers w/ Rear Coil Combination) is ideal for those desiring the adjustability and performance of coilover racing shocks up front, while retaining the ability to carry small loads or tow small trailers with the rear coil springs. The Stage 2 Comp System includes Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for enhanced tuneability.

System Benefits:
* Complete Bolt-in System
* Excellent Highway Ride and Handling
* Superior Off-road Ability among Mid-Arm Systems
* Improved Rear Roll Center
* Tuned Triple-Rate Coils
* Spring Correction Seats
* Vehicle Lean Correction
* Upgradable to RK Long-Arm System
* Lifetime Warranty Coverage

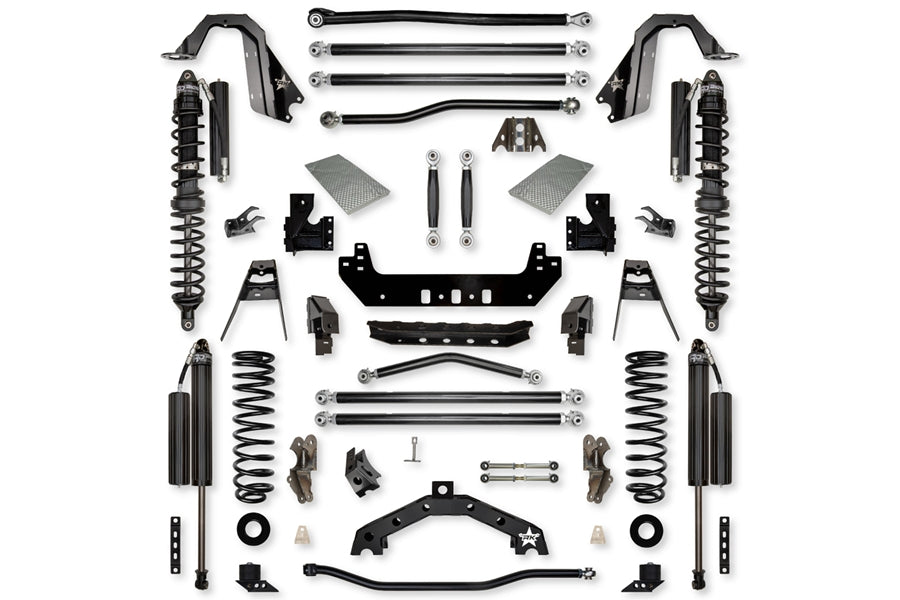

System Includes:
* (2) Front High Clearance Adjustable Lower Control Arms
* (2) Front High Clearance Adjustable Upper Control Arms
* (1) Adjustable Front Track Bar
* (2) "No Limits" Sway Bar Links
* (2) Rear High Clearance Adjustable Lower Control Arms
* (2) Rear High Clearance Adjustable Upper Control Arms
* (2) Triple-Rate Coil Springs
* (2) Rear Spring Pads
* (2) Adjustable Rear Sway Bar Links
* (1) Bolt-on Rear Track bar Relocation Bracket
* (1) Rear Adjustable Track Bar
* Shock Towers and Brackets (DEPENDING ON SHOCK PACKAGE CHOSEN)

Shock Information (Comp System Stage 2):
* 12” Travel Front RRD 2.625" FCD Coilover Shocks Yielding 13.3” of Front Axle Travel
* 11.5” Travel Rear RRD 2.625 FCD Shocks Yielding 12.8” of Rear Axle Travel
* All RRD Shocks and Coilovers are Designed and Built in-house.

Wheel Fitment Recommendations:
* Rubicon: 37” Tall Tires – Recommend 4.5” of Back Spacing; 40” Tall Tires – Recommend 3.5” of Back Spacing
* Sport and Sahara: 37/38” Tall Tires - Recommend 3.5” of Backspacing

Tire Fitment Recommendations:
* Rubicon with Full OEM Fenders: 37”/38” Tall Tires (3” Bump Stop Height Recommended)
* Rubicon with Trimmed or High Lined OEM Fenders: 40” Tall Tires (3” Bump Stop Height Recommended)
* Sport and Sahara with Full OEM Fenders: 37” Tall Tires (3” Bump Stop Height Recommended)
* Sport and Sahara with Trimmed or High Lined OEM Fenders: 38” Tall Tires (3in Bump Stop Height Recommended)

General Notes:
* All lift heights are based on Rubicon models for standard builds (e.g., front bumper and winch, rear bumper and full-size spare).
* If building with a spare delete, a 1” drop in coil lift height is recommended for the rear.
* For "overland style" or heavily up-fitted builds in the back, upsizing 1” in coil lift height is recommended for the rear.
* A new front driveshaft is recommended for routine off-roading.
* Requires removal of the OEM shock mount of frame and OEM shock and spring mount of the axle.
* Requires welding of the new coilover mount on the axle only.
* Requires aftermarket fuel tank or relocation of factory fuel tank.
* Requires the use of an aftermarket front axle housing with FAD Delete to weld the front upper arm mount to.
* Requires welding of the front and rear long arm mounts.
* Requires removal of the OEM frame rear control arm mounts and OEM axle side rear lower control arm and track bar mounts.
* Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts.
* Limiting straps are recommended to avoid over-extension of suspension components after vehicle setup.
