2-Row All-Aluminum Radiator with Transmission Cooler

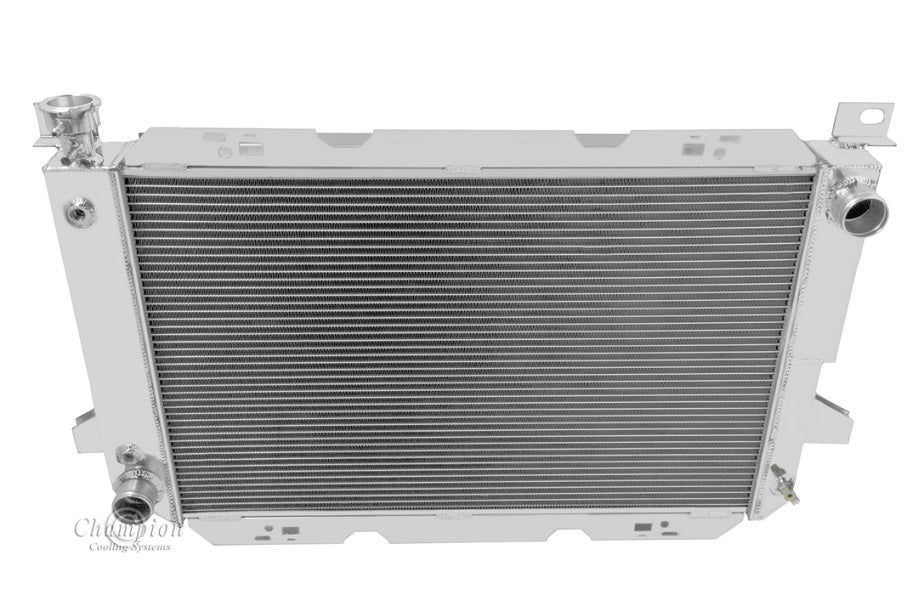

The Champion Cooling Systems EC1451 is an all-aluminum radiator from their Economy series, offering a cost-effective cooling solution for classic vehicles. It boasts a 2-row brazed aluminum core with 14-16 louvered fins per inch and tig-welded aluminum tanks, all constructed from aircraft-grade aluminum. This design allows for stronger, wider tubes, enabling the 2-row aluminum core to provide superior performance compared to a three-row copper brass radiator of similar dimensions, while also being lighter and more affordable. This radiator is specifically engineered for applications with up to 500 horsepower. It features a core thickness of 1.63" and overall dimensions of 22.25" tall (including cap) by 37.25" wide. The inlet and outlet sizes are both 1.75", located on the passenger and driver's sides, respectively. The tanks are 3" thick, and the tubes are 0.75" thick. Included with the EC1451 are a 13 lb. radiator cap and an integrated transmission cooler with 1/4-18NPT fittings. For optimal performance, the manufacturer recommends two 12" or 14" electric fans, which are sold separately, as is an aluminum fan shroud. Champion Cooling Systems backs this radiator with a lifetime warranty and a price match guarantee. The EC1451 is designed to fit 1985-1996 Ford Bronco models with 5.0L/302ci or 5.8L/351ci V8 engines, across various submodels including Custom, Eddie Bauer, XLT, XLT Lariat, XLT Nite, and XLT Sport.
