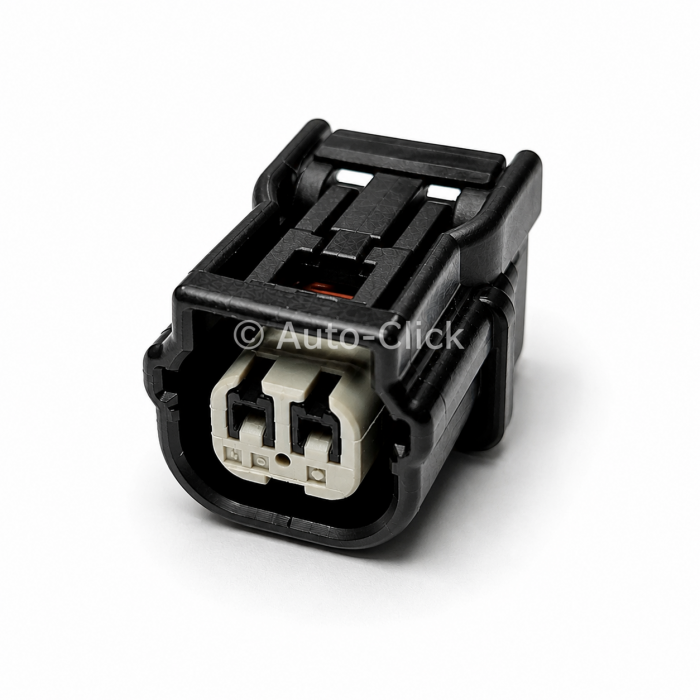

2-Way Female HV/HVG Sealed 040 Housing

The Sumitomo 6189-7036 is a genuine OEM 2-position micro-sealed female terminal receptacle, also known as a premium Sumitomo HV & HVG Sealed Series inline plug assembly. It utilizes a high-performance 1.0mm (040) micro-terminal system footprint and features a 2-way single-row layout. This connector is pre-assembled with an integrated front-loaded light gray terminal position assurance (TPA) lock plate and a top-actuated mechanical thumb-release locking latch. Engineered for secure, watertight connections in space-restricted areas, this authentic 2-pin Sumitomo 040 micro-sealed female connector is a common factory standard interface on modern Toyota, Lexus, and other Japanese production vehicles. It is frequently specified for sub-miniature under-hood and chassis sensors, including variable valve timing (VVT) solenoids, camshaft position sensors, ambient external temperature probes, and select windshield washer fluid level units. The robust nylon shell is constructed from heat-stabilized Polyamide (PA66) and is built to withstand engine bay heat and environmental contaminants. An internal perimeter silicone seal effectively blocks moisture, oil, and dust. The front-loaded retainer ensures absolute terminal position assurance (TPA), preventing pin back-out under vibration. This connector is ideal for motorsport loom builders, professional auto-electrical workshops, and trade component suppliers. Key technical attributes include its manufacturer part number 6189-7036, a 2-Cavity Female Housing with a Single-Row 1x2 Matrix layout, and compatibility with genuine Sumitomo HV / HVG Sealed 1.0mm (040) size female socket terminals. The connector is completely weatherproof and fully sealable, though individual 040 wire seals are required for lead assembly. It is dispatched as an individual bare contact housing block; crimp terminals, seals, and male mating shrouds must be ordered separately.
