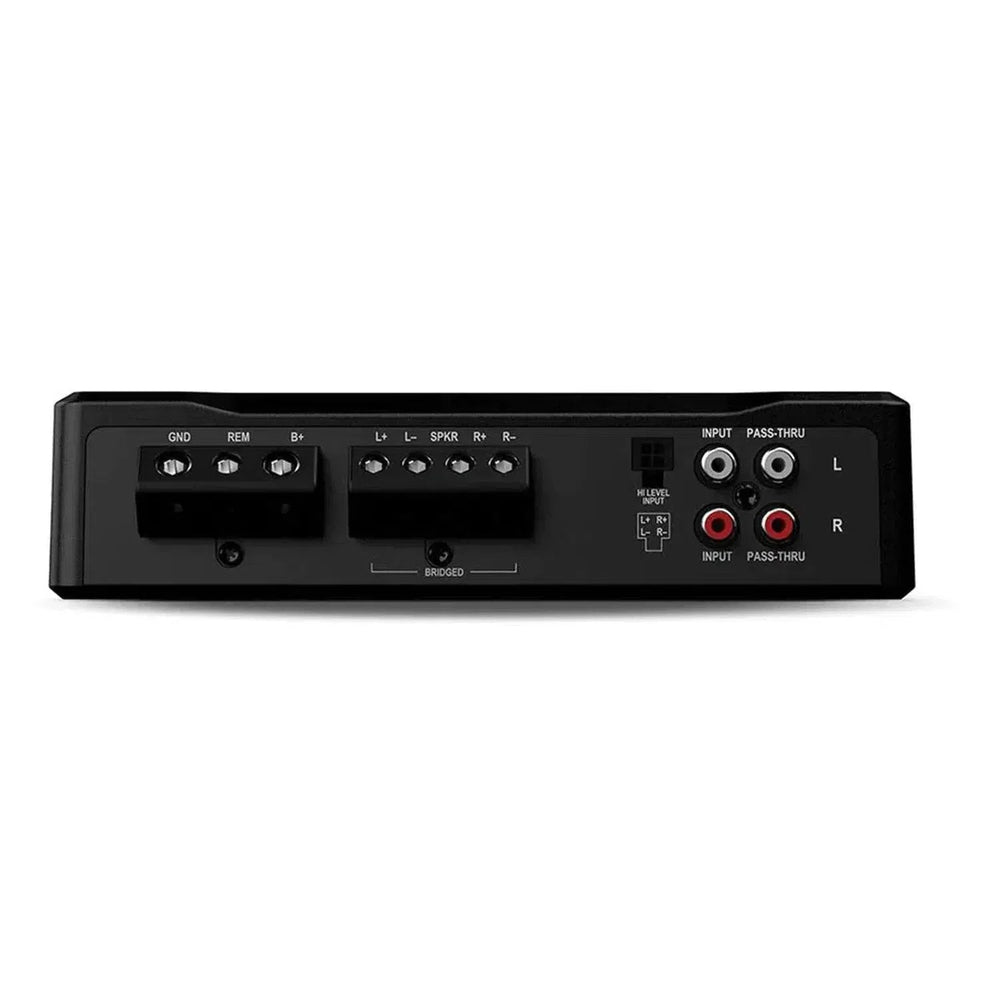

200-Watt 2-Channel Full-Range Class-D Amplifier

The Rockford Fosgate R2-200X2 is a 200-watt, full-range Class-D 2-channel amplifier, designed to be an efficient and reliable component for car audio systems. It offers versatility by operating at 4-ohm or 2-ohm stereo configurations, and can also be bridged for a 4-ohm mono output. Its Class-D topology significantly reduces current consumption, minimizing the load on your vehicle's electrical system. Engineered for ease of use and performance, the R2-200X2 features Rockford Fosgate's patented C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) technology, which includes in/out clip LEDs to simplify gain setting and optimize audio output. The P.O.W.E.R. (Power Supply) circuit design dynamically increases output power as the input voltage rises, ensuring consistent performance. The amplifier is also equipped with fully adjustable 12 dB/octave Butterworth crossovers for both high-pass and low-pass filtering, allowing precise control over frequencies from 50 Hz to 250 Hz, with an all-pass option available. Constructed with a cast aluminum heat sink for effective thermal management, the R2-200X2 also boasts Balanced Differential Inputs to cancel out noise picked up by signal cables. It includes features like an Auto-Sense bypass switch for vehicles with Retained Accessory Power (RAP) and a top-mounted control panel for convenient access to settings. For protection, it incorporates NOMAD (real-time analog computer) to safeguard against shorted speaker wires and dangerously low impedances, along with short circuit and over-current protection. The amplifier is CTA-2006 compliant, ensuring its power ratings meet industry standards for accurate output.
