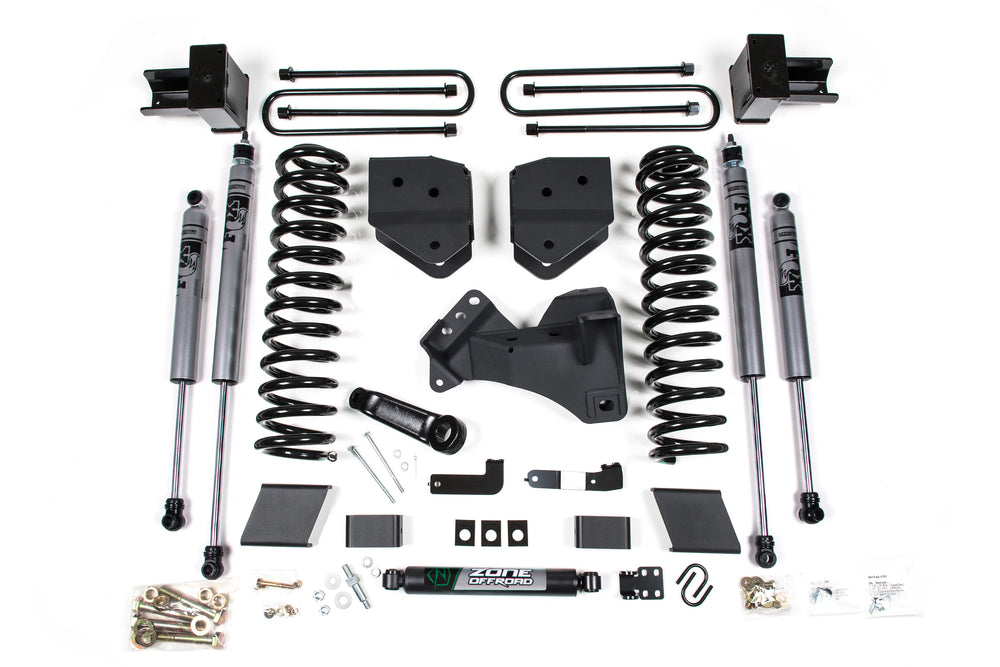

2017 F250/350 4IN SUSPENSION SYSTEM DSL

The Zone Offroad F48 lift kit (SKU: ZONF48F) is a 4-inch suspension lift kit designed for Ford F-250 and F-350 Super Duty trucks from 2017-2019, specifically 4WD diesel models.

Key Features & Benefits:
* High strength front coil springs for improved ride quality.
* Radius arm drop brackets to correct caster and maintain suspension geometry.
* Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle.
* Bump stop relocation, sway bar relocation, and brake line relocation to maintain factory-like operating angles.
* Replacement 5-inch rear lift blocks and u-bolts to lift and level the stance.

Rear Lift Options:
* Block Kit Without Factory Overload (for vehicles with 2-leaf main pack)
* Block Kit With Factory Overload (for vehicles with 3-leaf main pack)

Shock Options:
* Nitro Series (nitrogen-charged, twin-tube, 10-stage velocity-sensitive valving, dual-welded ends, black powder coat finish)
* FOX 2.0 Adventure Series (2-inch diameter steel body, internal floating piston (IFP) monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, clear anodized finish)

Recommended Tires & Wheels (Trimming may be required):
* 37 x 12.5 with 17 x 9 and 5 in. Backspace
* 37 x 12.5 with 18 x 9 and 5 in. Backspace
* 37 x 12.5 with 20 x 9 and 5 in. Backspace
