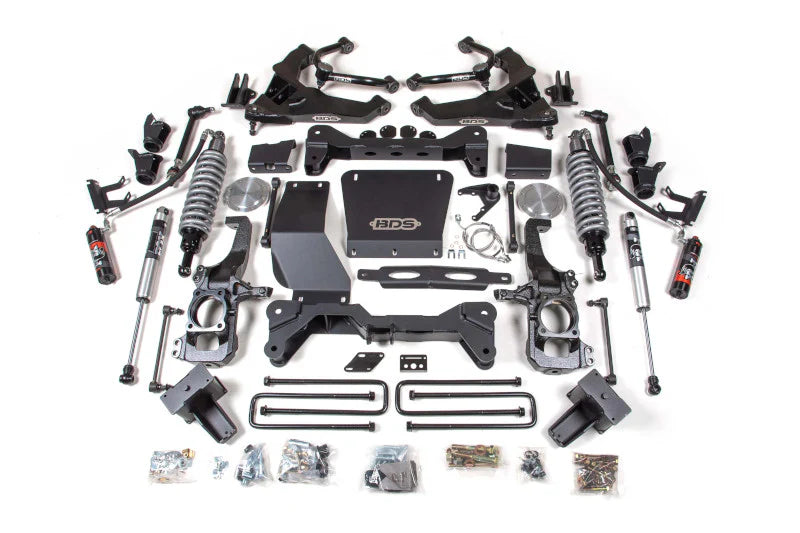

2020-2024 GM HD LCA Kit - Pass

This kit is designed to enhance the stance, performance, and capability of the specified GM trucks, allowing clearance for up to 38" tires. The core of the system consists of FOX 2.5 Performance Elite (PE) coilovers with aluminum bodies for improved damper performance and heat dissipation. They feature DSC (dual speed compression) adjusters on the reservoir, providing 12 high-speed and 10 low-speed compression settings for precise tuning. The coilovers come pre-tuned and assembled for a 6.5" lift. The kit includes bolt-on frame brackets and a weld-in support gusset for the upper mount, making it reversible. The system also upgrades the upper and lower control arms. The upper control arms are fabricated from 1.5" OD x .120-wall tubular steel, TIG welded for strength, and feature indexed ball joint cups for increased down travel and camber adjustment. They utilize premium ball joints and factory-style rubber bushings for smooth and durable operation. The lower control arms are made from high-strength steel, fully boxed, and internally gusseted, incorporating reinforced lower coilover mounts, durometer-specific rubber bushings, and high-quality Moog ball joints. A heavy-duty inner and outer tie rod kit is also included. The kit uses a high-clearance design, correcting suspension and steering geometry, and includes 1/4-inch thick steel crossmembers, multi-piece differential relocation brackets, heavy-duty skid plates, and CNC-machined ductile iron steering knuckles. Rear lift is achieved with replacement lift blocks, a u-bolt flip kit, and FOX 2.0 Performance Series shocks.
