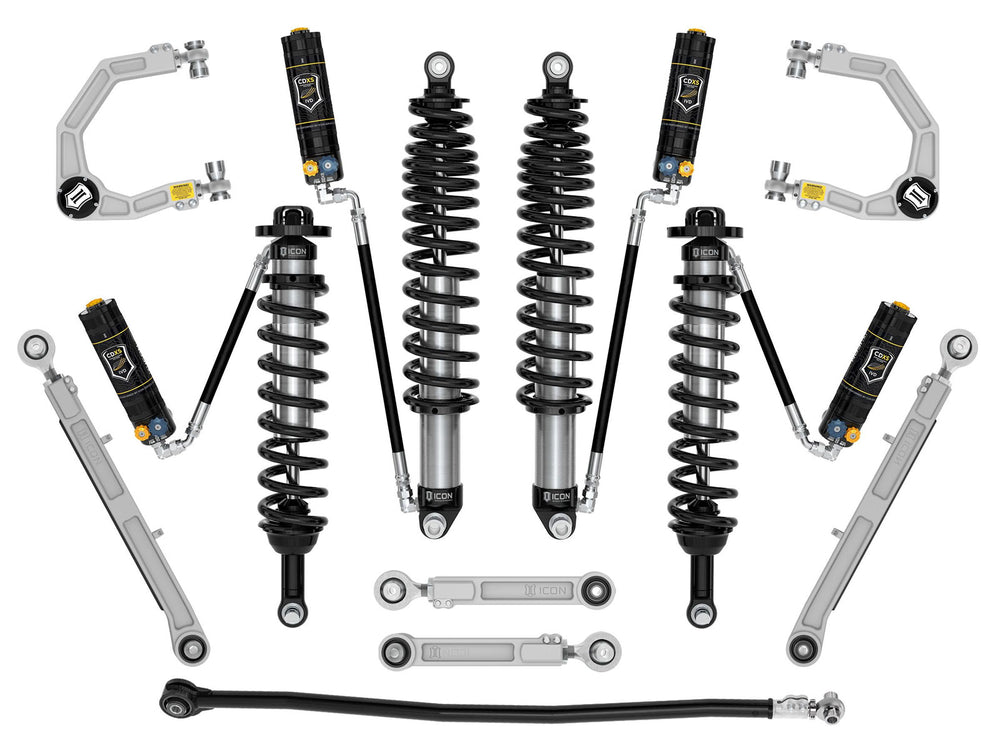

2021-2023 Ford Bronco Non-Sasquatch 3-4 Inch Lift Stage 7 Suspension System CDXS Billet Icon Vehicle Dynamics

Part #: K40007D

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDXS to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4 Inch of front lift and 2-3 Inch of rear lift over stock 4-door Broncos without the Sasquatch Package.The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.Stage 7 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.Features and Benefits:To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 7 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 7 also includes the complete billet rear link kit including upper links and ICON's tubular Adjustable Rear Track Bar. The added upper links have been designed for clearance from the fuel tank during maximum articulation and feature greaseless bushings, massive FK rod ends, and on-vehicle adjustability just like the lower links. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.This suspension system is designed to provide up to 11.5 Inch of front suspension travel and 14 Inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 Inch and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35 Inch and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.Improved suspension performance and ride quality over stockUp to 11.5 Inch front / 14 Inch rear wheel travel with 35 Inch tire fitmentVehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard useCoilovers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressivenessAdjustable coilovers yield up to 3-4 Inch of front lift height and 2-3 Inch of rear lift height over stock 4-door Broncos without the Sasquatch packagePTFE lined spherical bearings and application specific mounting hardware6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock bodies with 7/8 Inch diameter shaftsICON engineered coil springs featuring a unique triple rate rear coil designHigh strength alloy CNC machined lower bar pinsBillet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivabilityUCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustmentAdjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bindAdjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment100 Percent Bolt-on system - no drilling, cutting, or welding necessary for installDetailsActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Control Arm: YesAdjustable Damping: YesAdjustable Rebound: NoBushings Included: YesCoil Spring End 1 Type: SquareCoil Spring End 2 Type: SquareCoils Quantity Front: 2.0Coils Quantity Rear: 2.0Damping Adjustment Type: Dual Speed ManualFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 4.0 InchMaximum Lift Front: 4.0 InchMaximum Lift Rear: 3.0 InchMinimum Lift Front: 3.0 InchMinimum Lift Rear: 2.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: NoRear Shock Body Diameter: 2.5Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 35 Inch X 12.50 Inch (Recommend High Clearance Crash Bars Part Number 42000, 37 Inch Tires Require Coilover Bump Stop Spacers Along With Trimming And Modifications)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch With 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch With 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm OffsetReservoir Style: RemoteShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191013 - Nipple Greasing Adapter Kit, 611074 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 3/8 Inch Tall, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 42000 - 21-23 Bronco High Clearance Crash Bar Kit, 45212 - 21-23 Bronco XD Tie Rod Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 611075 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 1/2 Inch Tall

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.
