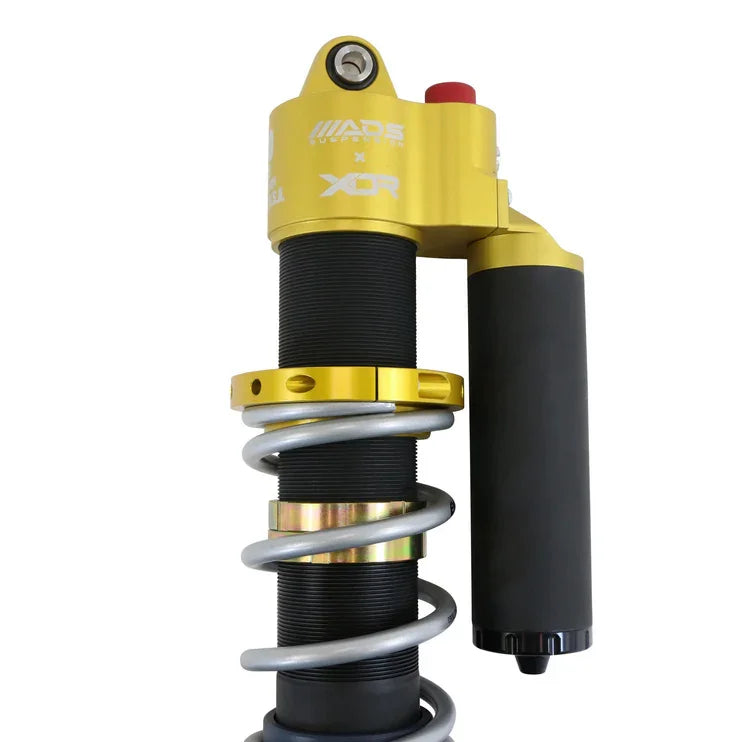

23-24 CAN-AM MAV-R DFR MBR SHOCK KI

The ADS Direct Fit MBR (Multi-Stage Bypass Ring) Technology shock system provides advanced suspension tuning through a true multi-stage internal bypass system. Each bypass zone is independently adjustable using a positive stop helix system, allowing precise control of damping characteristics throughout the shock’s travel. The MBR system delivers flow characteristics comparable to 7-tube external bypass shocks on 16-inch stroke applications in a compact internal bypass design. Integrated free bleed ports allow refinement of the damping curve. A dedicated top-out control zone provides mechanical and hydraulic damping protection. The system features a 4-way adjustable reservoir (independent high- and low-speed compression and rebound) and a dual-hose reservoir system for enhanced cooling with internal fluid diverters. Each shock is vacuum-bled and filled with high-quality synthetic hydraulic fluid to minimize cavitation, reduce fade, and extend service life.
