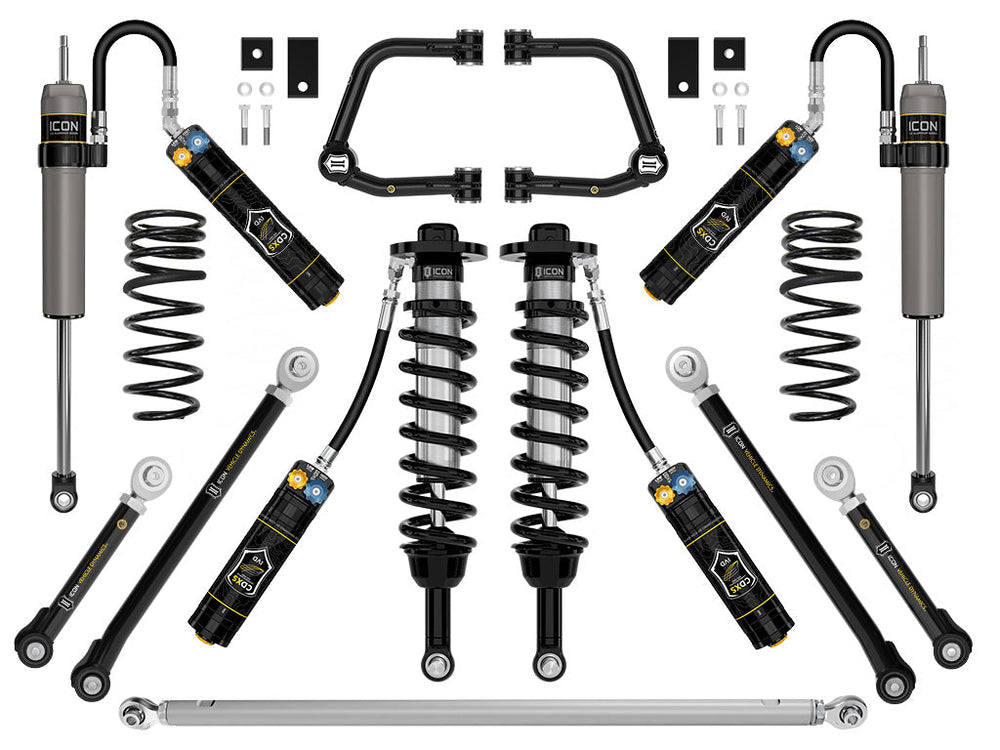

23C SEQUOIA 34.5IN STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS (TRD)

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 9 system with the addition of billet aluminum upper and lower rear links and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, improved alignment specs, and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. It includes billet front upper control arms, a front sway bar drop kit, dual rate rear coil springs, CDXS 2.5 Series coilovers, and rear shocks. The coilovers allow up to 3-4.5" of lift height adjustability. ICON's vehicle-specific shock length and valving, along with the larger 2.5" shock body and increased piston area, yield maximum travel (up to 40% increase over stock) and superior ride quality. Remote reservoirs increase shock oil volume and heat dissipation. These coilovers also feature ICON's exclusive Compression Damping Dual Speed (CDXS) valves for independent adjustability of high-speed and low-speed compression force with 10 detented settings.
