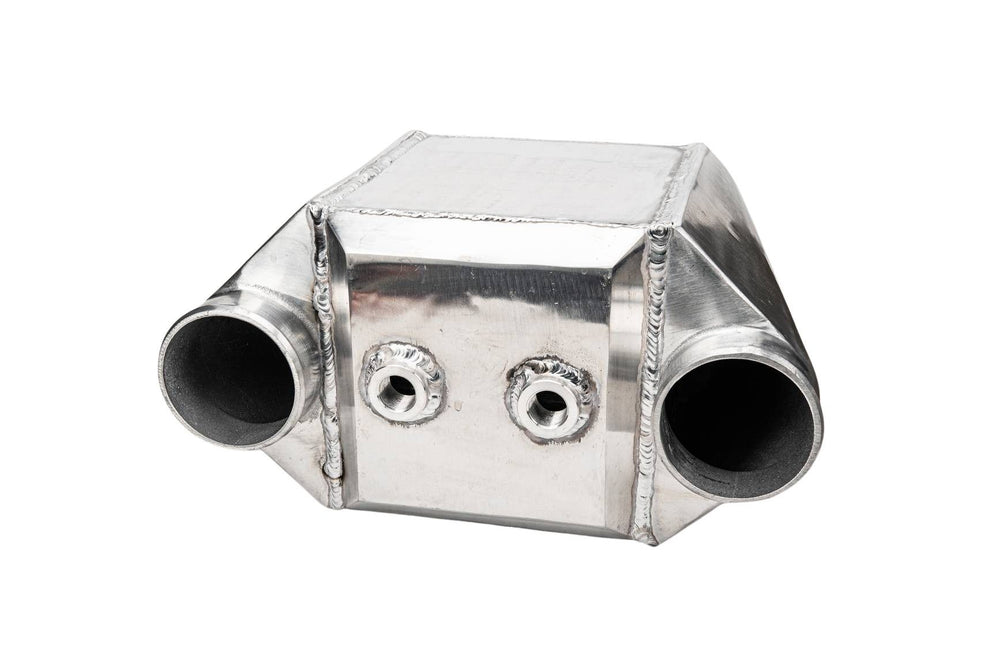

2500 CFM / 2000 HP Aluminum Intercooler Kit

The FrozenBoost water to air intercooler represents a significant cooling solution for high-demand automotive applications. Its construction is entirely of lightweight aluminum, utilizing a no-epoxy core design to ensure efficiency and durability. This intercooler is built to handle substantial performance levels, recommended for up to 2500 CFM and supporting approximately 2000 horsepower. Key specifications include a fin pitch of 21 fins/inch, with distinct air-side (12.5 FPI) and water-side (8.5 FPI) fin densities. The unit boasts an exceptionally low pressure drop, measuring less than 0.5 PSI, which is crucial for maintaining consistent performance. The inlet and outlet are both 4" NPT threaded, and the core dimensions are 9.5"x9"x9", with endtanks adding to the overall length. It is rated for a maximum water/air pressure of 70 PSI. This intercooler features both the inlet and outlet on the same side. It's important to note that this unit uses NPT threads for its fittings, which are more readily available in the US compared to BPT threads often found on other intercoolers. A complete liquid-to-air intercooler system requires additional components such as a water pump, a heat exchanger (radiator), and potentially a reservoir, all of which are available from FrozenBoost.
