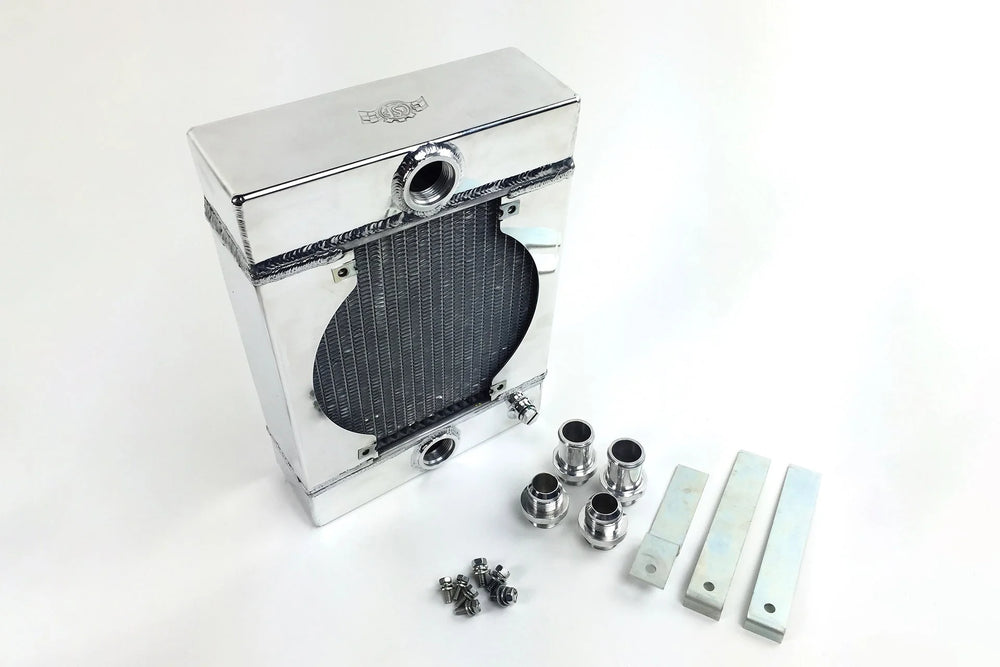

3.5-Inch Thick Radiator with SPAL Fan

The CSF High-Performance KING Cooler is a universal drag race radiator engineered with input from top drag race builders. It utilizes CSF's exclusive B-Tube Technology, featuring a specially formed, brazed tube shape that offers superior cooling efficiency and strength compared to standard radiator tubes. This advanced design allows for the use of thinner, lighter aluminum material without compromising performance. This radiator boasts a substantial 3.5-inch thick, 2-row core and comes equipped with a powerful 9-inch 590 CFM SPAL puller fan, complete with mounting hardware. The integrated fan shroud is laser-cut and TIG-welded for precise airflow management. The end tanks are designed with 1 5/16"-12 threaded bungs, accepting included 1.25-inch slip-on fittings and -16 inlet/outlet fittings, which facilitate easier setup and customization for various applications. Additionally, it includes universal mounting brackets, a drain plug bung with an M12 x 1.5p thread pitch, and is available in a hand-polished mirror finish or a stealthy satin black. The radiator's fluid capacity is 2.95 liters (0.78 gal), and its overall dimensions are 14.5"H x 10.0"L x 3.6"W (5.65"W with fan installed).
