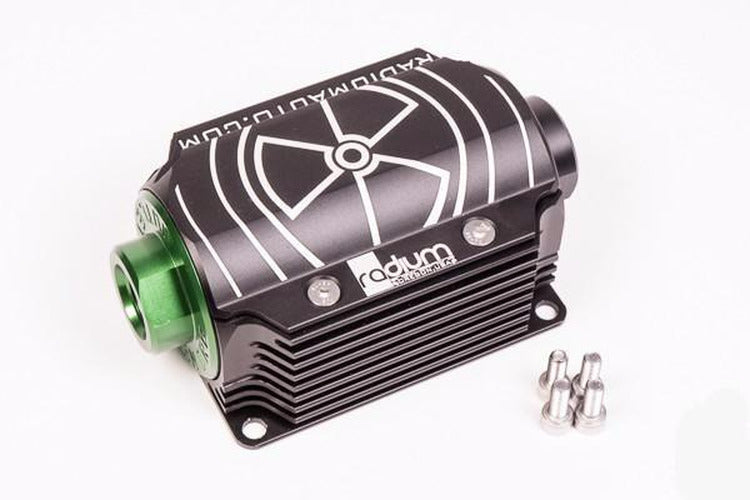

3-Piece Fuel Filter

The Radium Engineering High Flow Fuel Filter offers exceptional flow rates and industry-leading filtration, making it suitable for both low and high-horsepower applications. Constructed from a 3-piece body CNC-machined from 6061 aluminum and Type-II anodized for superior corrosion resistance, this filter ensures durability. Both end caps are removable and feature large -10AN ORB female threaded ports, designed for high-flow plumbing setups. This fuel filter utilizes Viton O-ring seals, providing optimal compatibility with a wide range of fuel types, including gasoline, diesel, methanol, ethanol, and alcohol blends like E85. It is rated for fuel pressures up to 150psi with negligible pressure drop. The filter employs a large 4.2"x1.75" element, balancing maximum flow with effective filtration, and can be completely disassembled for servicing. Radium Engineering offers various mounting solutions, such as a standard single position mount, a dual-position mount (for dual filters or filter and pump combinations), and a Heat Exchanger mount with cooling fins to help dissipate heat. These mounts, sold separately, are 60mm in size. Replacement filter elements are available, with options including cleanable/reusable stainless steel mesh elements (10 or 100 micron) or a more efficient microglass element (6 micron) that requires replacement. For specific applications requiring pressure retention, Radium also offers check valve fuel filter variants. These can help prevent fuel rail pressure from dropping when the engine or fuel pump is turned off, potentially speeding up engine restart cycles. The filter elements are designed with a stainless steel internal core to prevent collapsing under high flow conditions. The filter's burst pressure is rated at 750psi, and its large surface area aims to extend service life, though higher-powered engines may require more frequent servicing.
