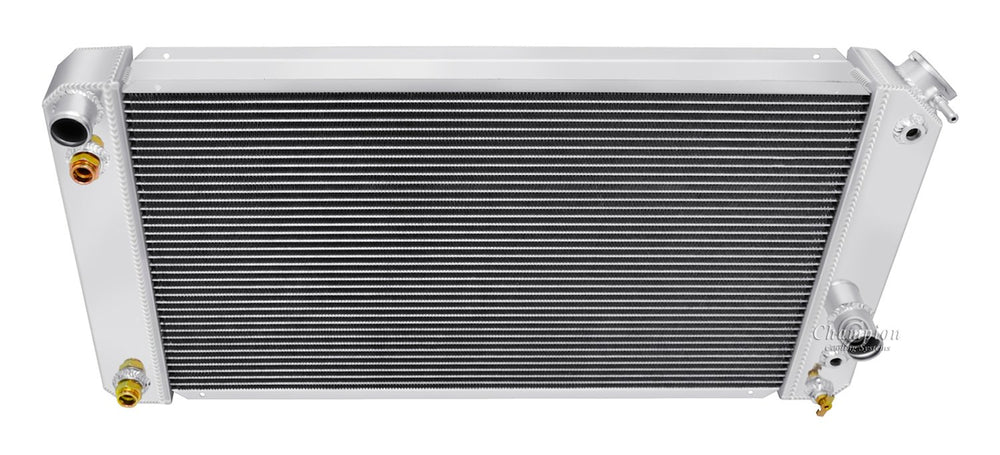

3-Row 2" Thick All-Aluminum Radiator

The Champion Cooling Systems CC1826 is a high-performance, all-aluminum radiator engineered to provide superior cooling for a range of Chevrolet, GMC, and Oldsmobile vehicles. This 3-row radiator boasts a core thickness of 2 inches and tank thickness of 2 1/4 inches, with core dimensions measuring 14 3/4" high by 26 1/4" wide and overall dimensions of 18" high by 32" wide. Its design includes specific hose locations with the inlet on the driver's side and the outlet on the passenger's side, featuring hose fittings of 1 3/8 inches for the inlet and 1 1/2 inches for the outlet. Additionally, this radiator comes equipped with an integrated transmission cooler and utilizes a pin mount system for installation. The overflow fitting is 1/4" NPT. This radiator is designed to fit 1996-2005 Chevrolet Pickup Trucks, 2000-2004 GMC Sonomas, 1996-2001 Oldsmobile Bravadas, and Chevrolet S/T Series trucks. It is specifically designed for the 4.3L (262ci) V6 engine. While it can accommodate an LS engine swap, a separate model (CC1826DP) may be required for certain applications. Champion Cooling Systems offers a Lifetime Limited Warranty on this product, underscoring their commitment to quality and durability.
