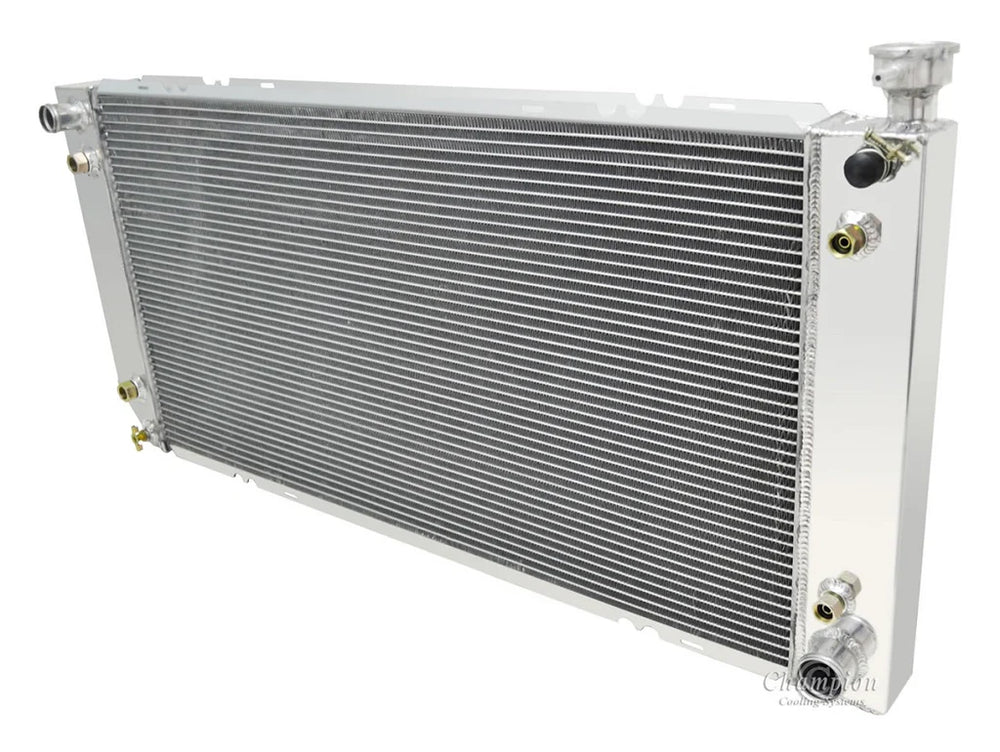

3-Row Aluminum Radiator with Transmission and Oil Cooler

The Champion CC1520 is an all-aluminum radiator featuring a 3-row core designed for high-performance cooling, capable of supporting up to 800hp. It includes integrated transmission and engine oil coolers, with specific adapter fittings provided: 1/2"-20 straight thread w/ 5/8"-18 adapter for the transmission cooler and M20 x 1.5 w/ 3/4"-18 adapter for the engine oil cooler. This radiator measures 20.38" tall by 40.58" wide overall, with a core dimension of 17.25" tall by 34" wide and 2.25" thick. The inlet is 1.31" on the driver side, and the outlet is 1.55" on the passenger side. The tanks are 2.5" thick, and the tubes are 0.63" thick. It is saddle-mounted for secure installation. For optimal performance, especially when using electric fans (sold separately), it is recommended to use two 14" electric fans or one or two 16" electric fans, tailored to this core size. A custom shroud for electric fan(s) can be made available upon request. This product comes with a Lifetime Warranty and is backed by a Price Match Guarantee.
