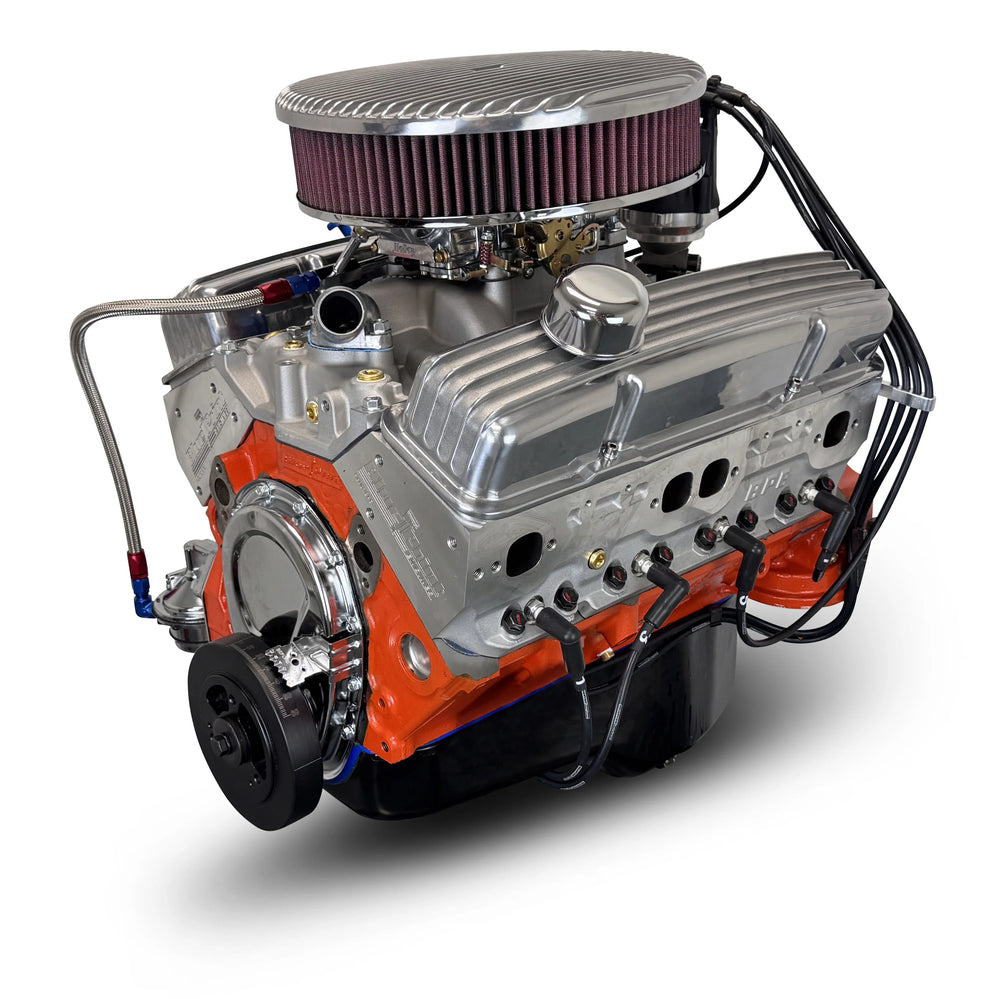

327 Small Block Crate Engine

The BluePrint Engines BP327CTCV is a GM Small Block compatible 327 cubic inch crate engine, delivering a potent 350 horsepower and 350 ft. lbs. of torque. This deluxe dressed engine is built upon a high-strength cast iron block with a one-piece rear main seal and 4-bolt mains. Internally, it boasts a forged crankshaft with a 3.250" stroke, forged 5.700" connecting rods, and hypereutectic pistons. The cylinder heads are BluePrint's aluminum units with 64cc chambers, 2.02" intake valves, and 1.60" exhaust valves, featuring 195cc intake and 75cc exhaust runners. The camshaft is a hydraulic roller with .495" intake lift and .502" exhaust lift, and 220° intake duration / 224° exhaust duration at .050" lift, with a 114° Lobe Separation Angle. This engine comes fully dressed with a Holley Brawler 670cfm vacuum secondary carburetor with electric choke, a BluePrint Tach Drive Pro Billet Ready Run Distributor, and an aluminum intake manifold. Premium vintage valve covers and air cleaner are also included, along with under-header spark plug wires, a thermostat housing, mechanical fuel pump, harmonic balancer, timing cover, spark plugs, and oil pan. It is designed to run on 87+ octane fuel and is internally balanced at the front and externally balanced at the rear. A crucial note for potential buyers is that this engine is not for use in pollution-controlled vehicles. The engine assembly is dyno tested before shipment to ensure it meets its advertised horsepower and torque ratings.
