~(33.8 lbs. 22X15X9)~ MANIFOLD VICTOR JR GM GEN IV L76/L92/LS3 CARBURETED APPL W/TIMING CONTROL MODULE

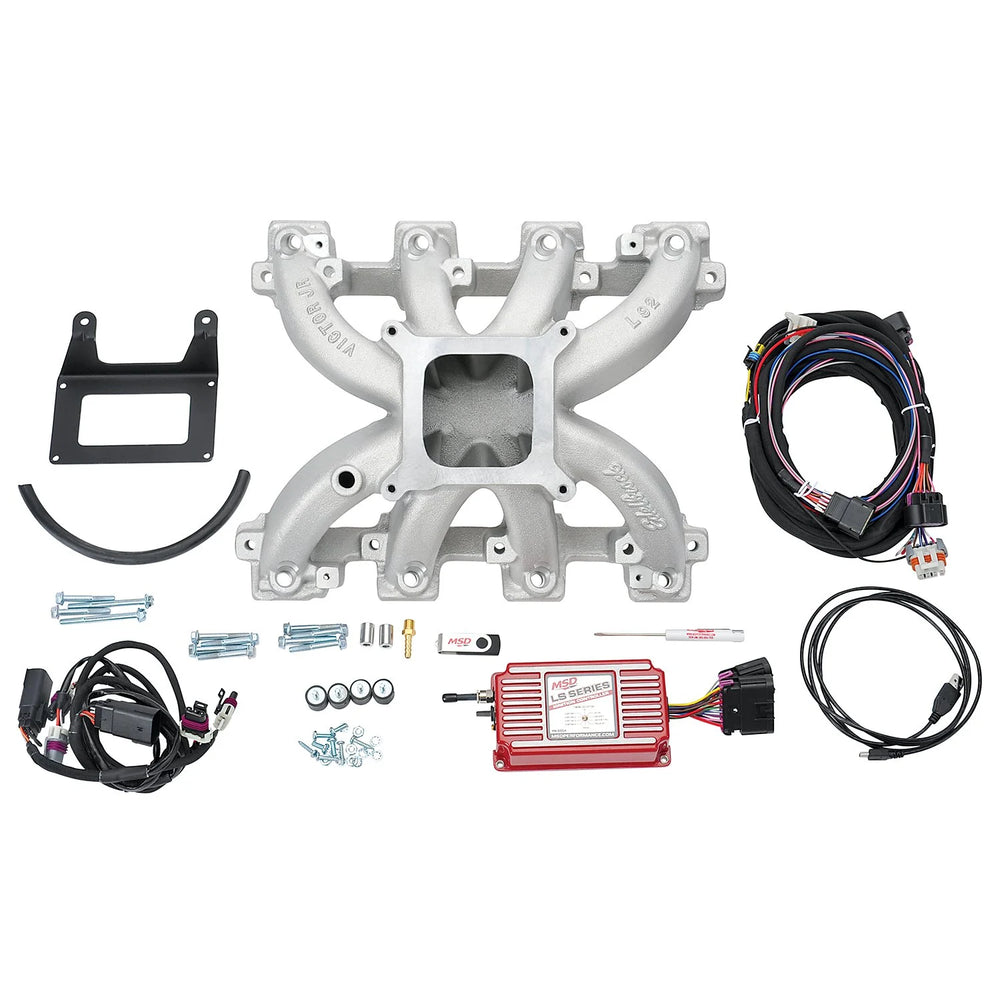

Edelbrock part #28456 intake manifold kit contains a Victor Jr LS3 PN 28457, an ignition timing control box, wiring harness, and bracket. It is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. The lightweight (13.6lbs) manifold is for carbureted high performance applications operating between 3500-7500 rpm. Top it off with a VRS-4150 carburetor and hang on. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head.
