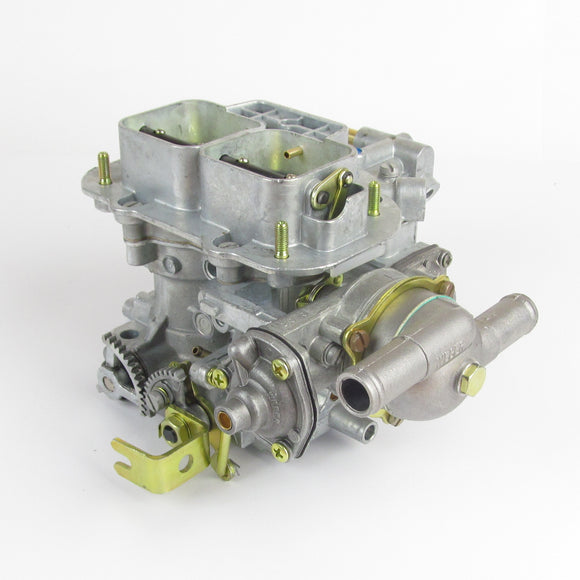

38 DGAS Twin-Choke Carburetor with Water Choke

The Weber 38 DGAS carburetor (part number 18930.035) is a genuine Weber product manufactured in Spain. This twin-choke carburetor features two 38mm throttle valves that operate in unison, providing robust performance. It includes a water-operated choke mechanism for reliable cold starts, making it suitable for "road-going" applications. This carburetor is specifically recommended for Ford V6 engines with 2.3, 2.8, and 3.0 liter displacements. It features a 46 x 93 mm bolt pattern for manifold mounting. The standard jetting includes a 27mm venturi, 142 main jet, F50 emulsion tube, 185 air corrector jet, 45 idle jet, and a 50 pump jet. The height from the base to the air filter face is 85 mm, with an overall height of approximately 111 mm. It is equipped with two fuel unions: an upper union for the fuel supply line and a lower union for the fuel return line. A small brass pipe behind the spindle gears may require blanking off if not used for controlling the summer/winter air filter flap on certain Ford engines. A wide range of jets are available for tuning the carburetor to specific requirements.
