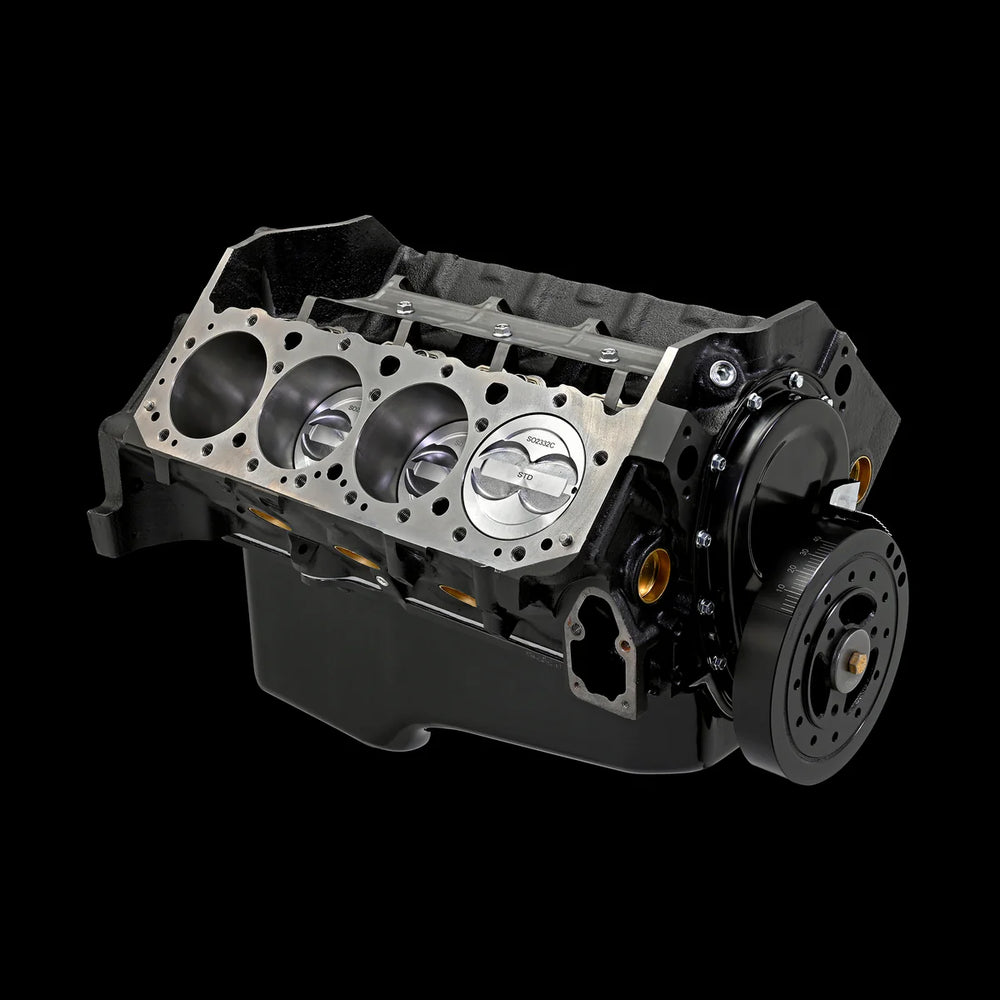

383 Short Block w/ Forged Crankshaft & I-Beam Rods

The Smeding Performance 383 Short Block serves as a robust base for high-output engine builds, utilizing a heavy-duty 4-bolt main block with a 4.000-inch bore and 9.025-inch deck height. The assembly is anchored by a 4340 forged steel crankshaft with a 3.800-inch stroke, paired with 5140 forged steel I-beam connecting rods featuring 3/8-inch bolts. UEM custom hypereutectic aluminum pistons, which feature coated skirts and a 13.5cc dish, are included to achieve a 10.0:1 compression ratio with 64cc heads or a 9.3:1 ratio with 72cc heads. This package includes a pre-installed camshaft kit—consisting of the camshaft, hydraulic roller lifters, roller timing set, thrust plate, lifter dog bones, and spring tray—along with a sealed-up kit containing the oil pump, welded pick-up, hardened driveshaft, black timing cover, and black oil pan. Builders should note that final assembly and tuning of this partial engine must be performed by an experienced engine assembler. The unit is backed by a 3-year, unlimited-mile warranty.
