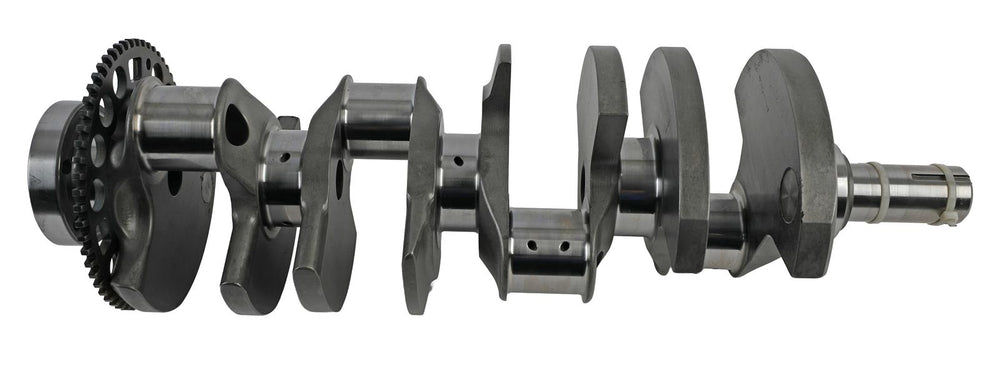

4.000-inch Stroke 4340 Forged Steel Crankshaft

Constructed from ultra-pure AISI 4340 forged steel and subjected to multiple heat treatments, this crankshaft offers unsurpassed wear and strength characteristics, ensuring longevity under high stress. Callies has optimized material distribution and strategically placed 8 Mass Correct counterweights to significantly reduce imbalance forces throughout the entire length of the shaft. This design approach results in superior bearing life and minimizes wear, crucial for high-output engines. Key specifications include a 4.000-inch stroke, internal balance, 2.559-inch main journals, and 2.100-inch rod journals. The crankshaft also features generously radiused lightening holes on all rod journals. When ordering, customers must specify either a 24 or 58 tooth reluctor ring to match their engine's requirements. The product is designed as a standard LS post and is a replacement for the APO31W-MG model.
