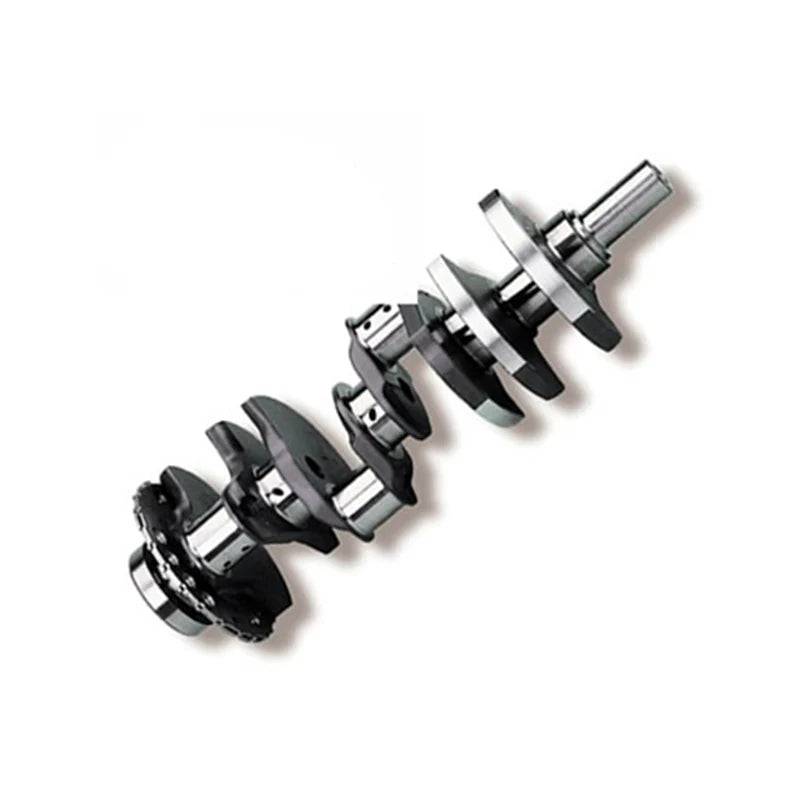

4.000-Inch Stroke Forged 4340 Steel Crankshaft

The Eagle CRS-434640006100 is a forged 4340 steel crankshaft engineered for high-performance LS engine builds. With a 4.000-inch stroke and internal balancing, this crankshaft is designed to handle demanding applications. Constructed from Eagle Specialty Products' signature non-twist forged 4340 steel, this crankshaft is built for durability and performance. It undergoes a rigorous multi-stage heat-treatment process, followed by stress-relieving and shot-peening. The design incorporates cross-drilled and chamfered oil holes for superior lubrication and .125-inch radius fillets on the rod and main journals to increase strength. Furthermore, the journals are precision-ground and micro-polished to a fine finish of less than 5 R.A. A target bob weight of +/- 2 percent is maintained to significantly reduce balancing time during assembly. Key specifications include a 4.000-inch engine stroke, forged 4340 steel material, and internal engine balance. It features a 24-tooth reluctor wheel for electronic timing signals and a standard crankshaft snout style. The rod journal diameter measures 2.100 inches, and the main journal diameter is 2.559 inches. This crankshaft requires narrow bearings and uses a 1-piece rear main seal. It is compatible with LS-series engines, including LS1, LS2, LS3/L92/L99, LS4, LS6, LQ4/LQ9, L76, Vortec 4800, and Vortec 5300 families.
