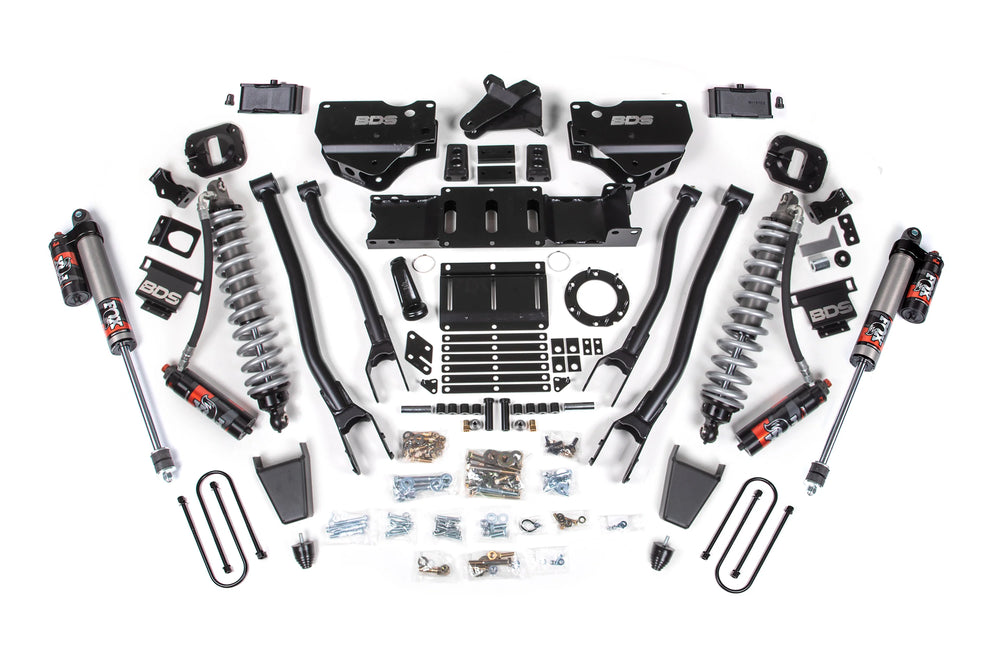

4-Inch 4-Link Suspension Lift Kit

The BDS Suspension 4" 4-Link Lift Kit is a comprehensive upgrade for 2019-2025 Ram 3500 trucks, designed to provide increased ride height and accommodate larger tires. This kit features a 4-link front suspension method and a 2-inch block for the rear lift, delivering a 4-inch front and 2-inch rear lift. The heavy-duty tubular steel 4-link arms are built for rugged strength and increased articulation. The front utilizes a BDS Coilover Conversion Kit with FOX 2.5 Performance Elite coilovers, mounting directly into the factory coil spring bucket. Installation is recommended to be performed by a professional technician due to the specialized tools required. A vehicle alignment is necessary after installation. Certain configurations require additional components: a DEF relocation kit is needed for Dually models with an 8-bolt Aisin transmission, a manual transfer case shifter extension is required for vehicles with a manual transfer case, and a carrier bearing drop is necessary for trucks with a 2-piece rear driveshaft. This kit will not fit air-ride equipped models and is specified for diesel models only, potentially requiring an aftermarket front driveshaft due to increased wheel travel.
