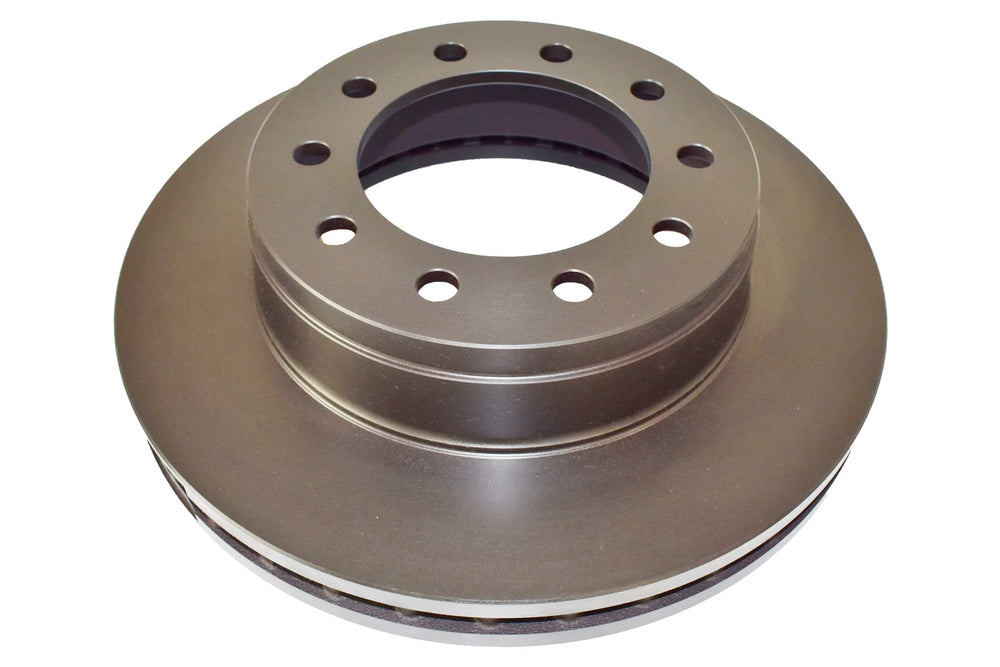

4000 Series Standard Brake Rotor

The DBA 4000 Series Standard Brake Rotor is a performance aftermarket brake rotor designed for drivers seeking braking capabilities above and beyond standard OE levels. It is cast from high-carbon alloyed iron and features DBA's Thermal Stability Profiling (TSP) process, which allows the metallurgy to withstand increased stress and heat generated during intense braking applications. This rotor is a direct, single-piece replacement for your original equipment. This vented rotor incorporates DBA's patented Kangaroo Paw ventilation system, which uses 144 diamond and teardrop-patterned pillars. The rotor has an outside diameter of 369 mm and an overall height of 98.5 mm, with a smooth surface type. The specifications include a center hole diameter of 129.2 mm, a nominal thickness of 39 mm, and 10 lug holes. The DBA42155 is compatible with various Ford F-450 Super Duty models from 2005-2009, 2011, and 2014, as well as Ford F-550 Super Duty models from 2005-2007, 2010-2012, and 2015-2016. Fitment notes indicate specific compatibility for the 2011 and 2014 Ford F-450 Super Duty with 10 lugs.
