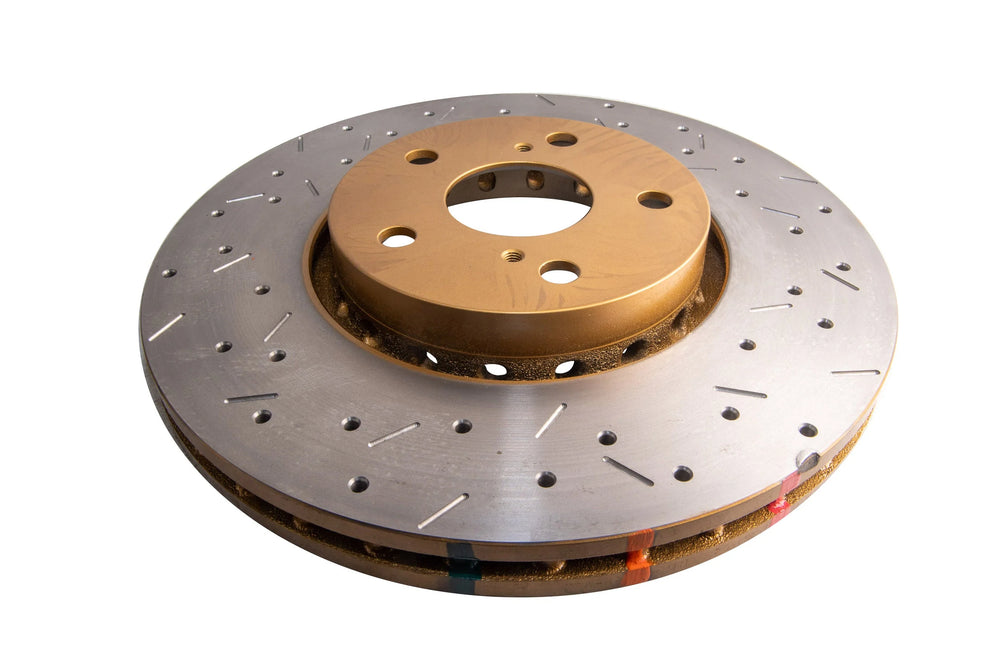

4000 Series XS Front Brake Rotor

The DBA 4000 Series XS brake rotor is engineered by Disc Brakes Australia (DBA) to provide a significant upgrade over standard OE braking performance. Constructed from high-carbon alloyed iron and subjected to Thermal Stability Profiling (TSP), these rotors are built to withstand the increased stress and heat generated during demanding braking conditions. This rotor features DBA's patented Kangaroo Paw ventilation system, which utilizes 144 diamond and teardrop-shaped pillars. The XS model incorporates a non-directional cross-drilled and slotted pattern, further enhancing passive cooling and helping to dissipate gases and heat effectively. The rotor's technical specifications include an outside diameter of 319 mm, a nominal thickness of 28 mm, and a vented rotor type with 5 lug holes. This specific rotor, DBA42702XS, is compatible with a range of Lexus and Toyota models, including the 2004-2006 Lexus RX330, 2007-2008 Lexus RX350, 2006-2008 Lexus RX400h, and the 2006-2007 Toyota Highlander (Hybrid models only).
