5-Inch 4-Link Coil-Over Conversion Lift Kit w/ FOX 2.5 Shocks

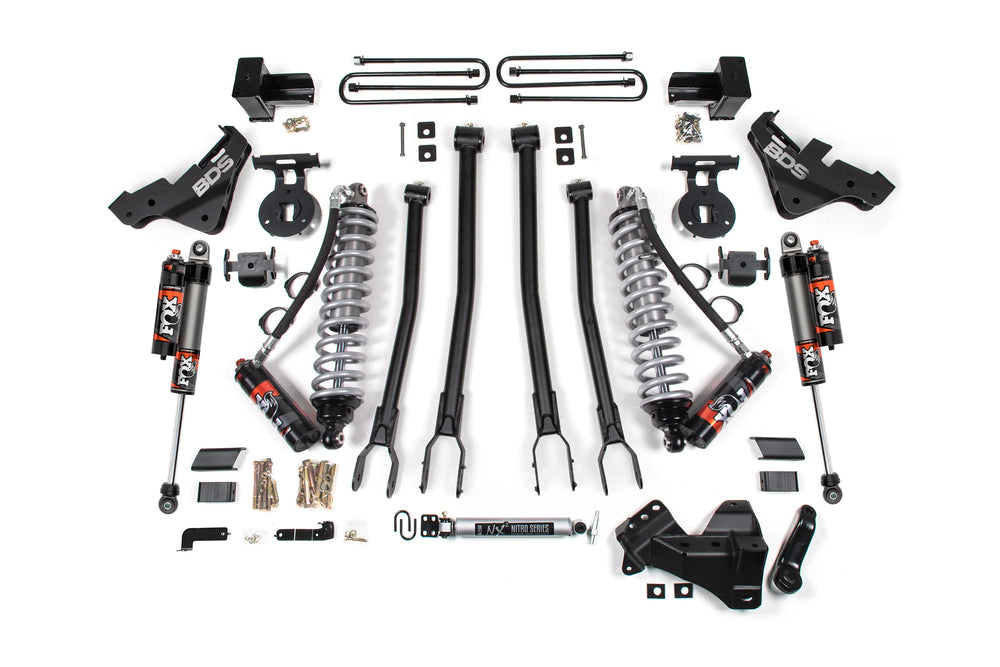

Maximize the capability of your Ford Super Duty diesel-powered truck with this 5-inch lift kit featuring a 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. This system is engineered to improve stance, performance, and overall capability, providing the necessary clearance for up to 37-inch tires. Up front, the kit incorporates diesel-specific FOX 2.5 coil-over shocks, BDS 4-link control arms with conversion brackets, a forged drop pitman arm, and a track bar bracket to correct steering geometry. The 4-link conversion replaces the factory radius arms, optimizing suspension geometry for enhanced handling, strength, and stability. High-strength steel brackets allow mounting of HD upper and lower control arms to maintain axle positioning and limit caster change. In the rear, the system uses a high-strength fabricated lift block (or optional leaf springs) along with longer u-bolts and matching FOX Performance shocks. The FOX 2.5 Performance Elite shocks feature a 2.5-inch diameter body, remote reservoir for increased fluid capacity and cooling, and a DSC adjuster offering 10 low-speed and 12 high-speed compression levels for precise tuning. This kit is specifically designed for 2023-2026 Ford F250 and F350 Super Duty 4WD diesel models. Recommended tire and wheel combinations include 37x12.50 tires with 20x9 or 17x9 wheels with 5 inches of backspace. Trimming may be required.
