5-Inch Radius Arm Lift Kit

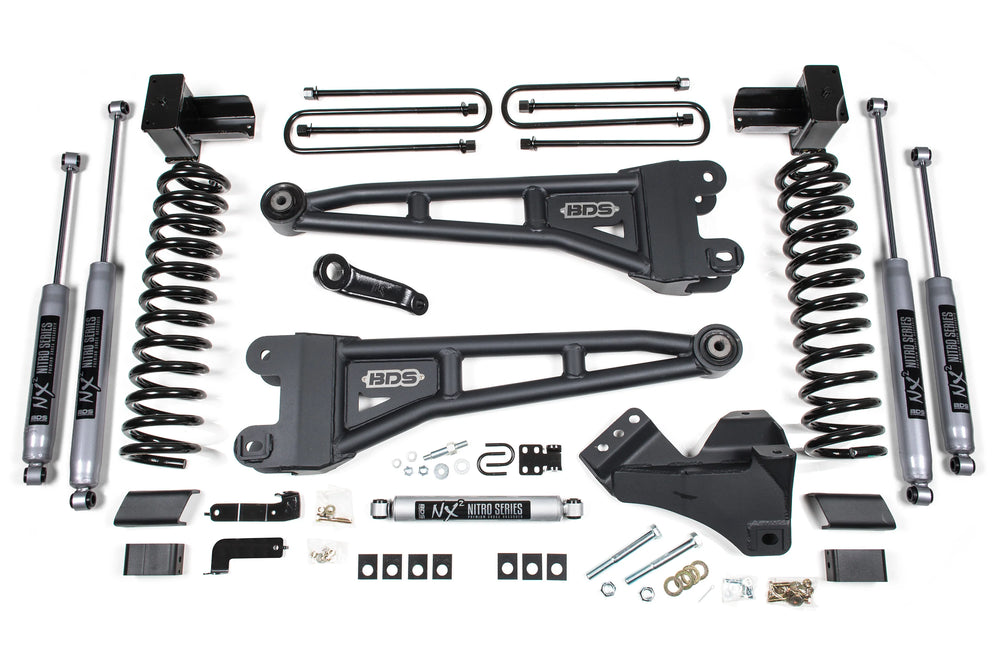

The BDS Suspension 5-inch lift kit with radius arms is engineered to enhance the stance, performance, and capability of Ford F250/F350 Super Duty gas-powered trucks. This comprehensive system provides the necessary clearance for up to 37-inch tires, transforming your vehicle for improved off-road and on-road experiences. Up front, the kit includes specially designed Pro-Ride coil springs tailored for gasoline engines, ensuring a correct lift height and a smooth, predictable ride across varied terrains. Heavy-duty, tubular steel radius arms replace the factory components, offering both caster adjustment for optimal alignment and increased ground clearance. Steering geometry is meticulously corrected using a forged drop pitman arm and a heavy-duty track bar relocation bracket, which keeps the front axle centered throughout suspension travel and minimizes steering angle for improved handling. The rear of the truck is addressed with a high-strength fabricated lift block and longer u-bolts to achieve a level stance. The kit comes standard with NX2 Nitro shocks, featuring a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for enhanced control. For those seeking maximum performance, an upgrade to FOX 2.0 Performance Series shocks is available, boasting an impact-extruded aluminum body, internal floating piston monotube design, and application-specific valving. Installation is designed to be straightforward with a 100% bolt-on process, requiring no modifications to the factory components. The kit also includes sway bar relocation brackets and brake line brackets to ensure all systems function correctly after the lift. Recommended tire and wheel combinations for 37 x 12.5 tires are provided, with a note that some trimming may be required.
