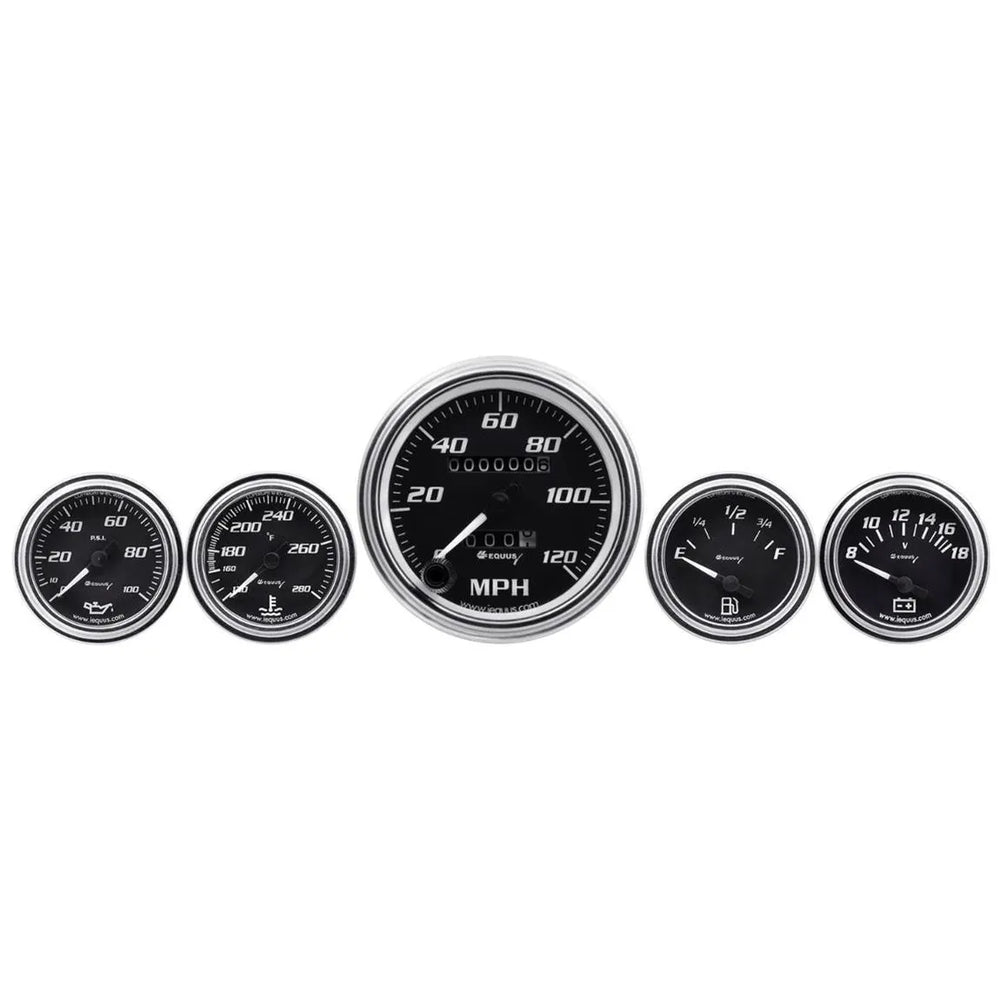

5-Piece Gauge Set Black Face/Chrome Bezel

Part #: E7500

This attractive, durable, and affordable Equus 7000 Classic series five piece mechanical gauge set features elegantly styled black dial, chrome bezel, backlit instruments for monitoring speed, oil pressure, water temperature, voltage and fuel level. Installation hardware included. Additional adapters sold separately.

Features:

• Set includes 3 3/8 in. 120 MPH mechanical speedometer, 2 in. 100 PSI mechanical oil pressure, 2 in. 280 degree F mechanical water temperature, 2 in. 18V electric voltmeter, and 2 in. electric 0-90 ohm fuel level gauges
• Back-Lit illumination for night use. Includes red and green bulb covers.
• Includes: 3/8 in. & 1/2 in. NPT brass adapter fittings for temperature gauge, 6 ft. nylon tubing with 1/8 compression fittings and 1/8 in.
• One million mile odometer with one thousand mile resettable trip meter.
• Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH)
• 5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
• Matching tachometer is available in Equus model 7068
• Includes installation instructions in English, French, and Spanish.
• Includes: NPT female to 1/4 in. NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.

Gauge Kit - 7000 Classic Series - Analog - Fuel Level / Oil Pressure / Speedometer / Voltmeter / Water Temperature - 3-3/8 in / 2 in Diameter - Black Face - Kit
