50 GPH 12V Electric Fuel Pump

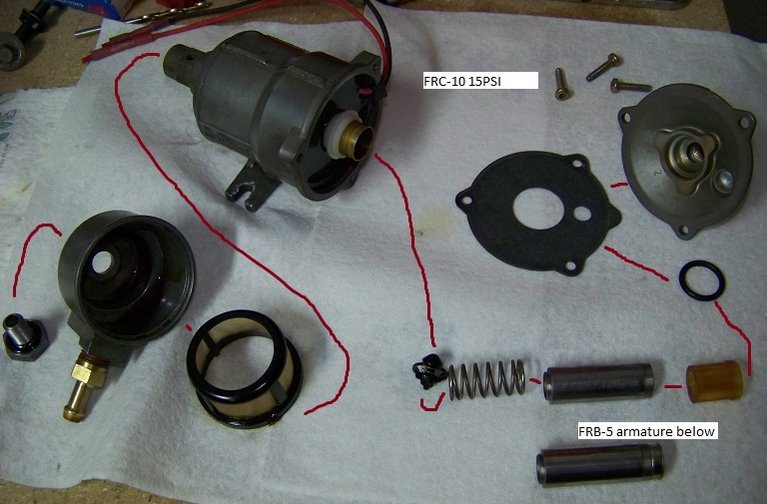

The Walbro FRC-10 is a 12V reciprocating electric fuel pump from the FR Series, designed for continuous operation. It delivers a substantial flow rate of 50 gallons per hour and maintains a pressure range of 12.5-16.5 psi, making it suitable for applications that do not require extremely high fuel pressure or flow rates, such as antique cars and small-engine vehicles. This pump replaces older 2000 Series bellows pumps and offers improved performance with less current draw. Standard features across all FR Series models include less than 2 amps average current requirement, reverse polarity protection for up to 60 minutes, and the ability to dry run for up to four hours. It is compatible with all commercially available pump-grade gasoline, gasohol, diesel, and bio-diesel, and operates within a wide temperature range of -40 to +70 degrees Celsius (-40 to +155 degrees Fahrenheit). The pump is also protected against transient voltages up to 100 volts and has approvals including U.S. Coast Guard 16623-1 and 16623-2, as well as European CE Standards EN 61000-6-2 and EN 6-3-2100. The FRC-10 specifically comes with 1/4-18 NPSF fittings. Unlike demand pumps, the FRC series pumps cycle continuously when power is applied and will not slow down or stop at a set pressure.
