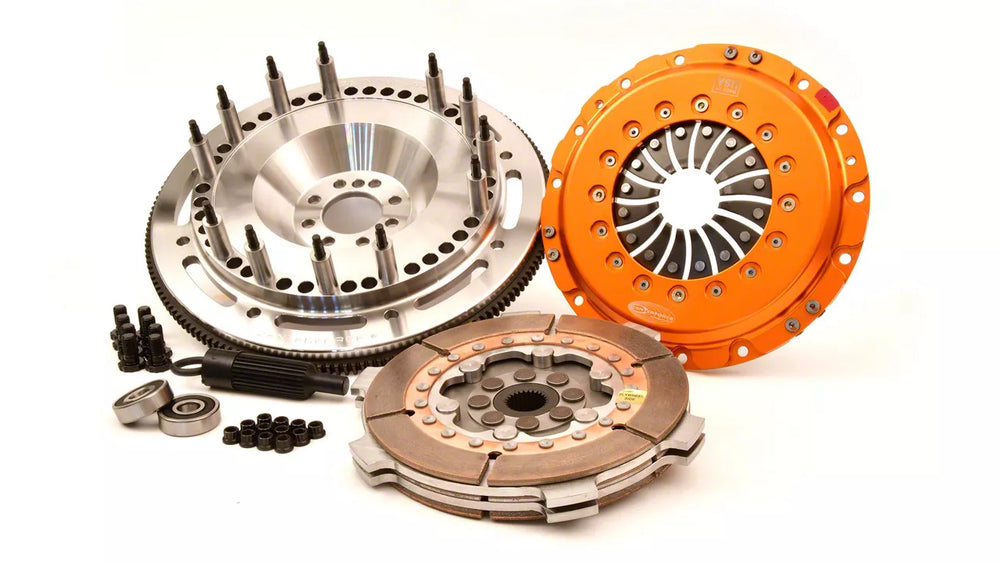

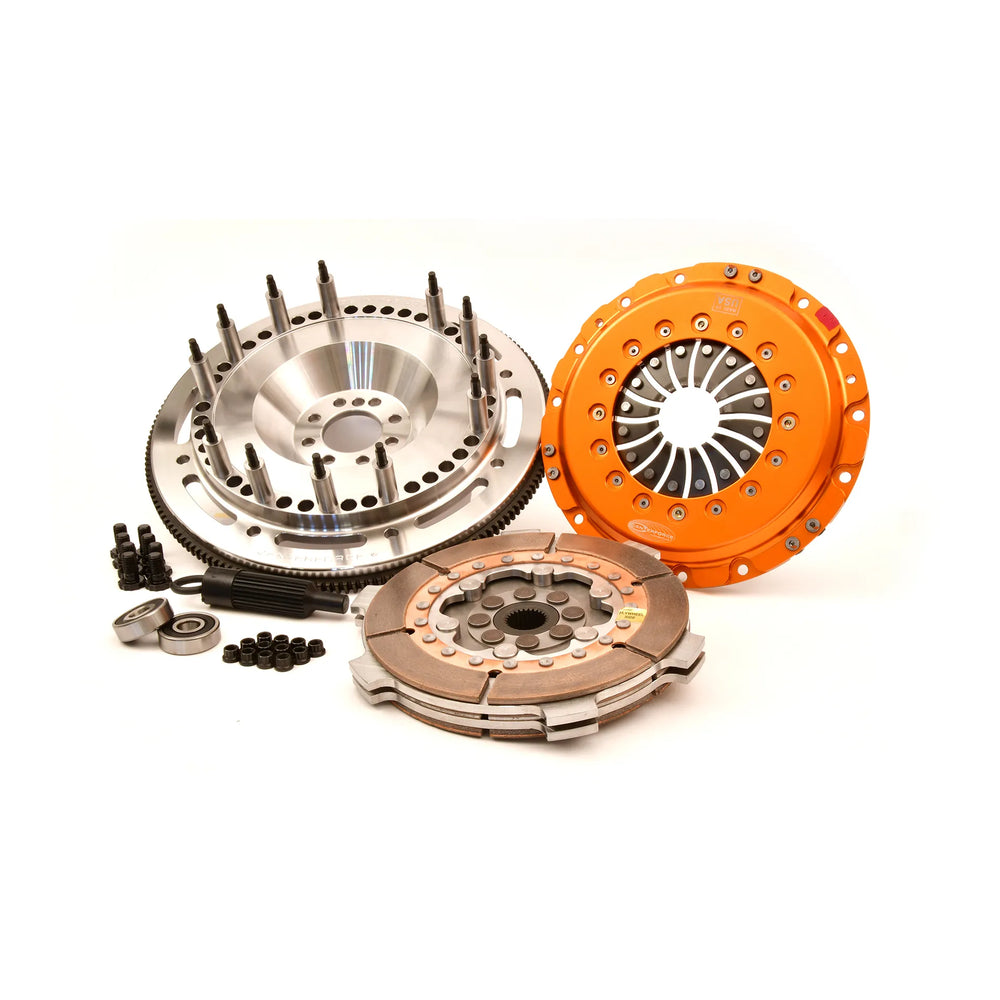

Centerforce TRIAD(R) XDS, Extreme Multi-Disc Clutch and Flywheel Kit

Part #: 838264077

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Features:

• 8.75" Diameter
• 222mm Diameter
• 1-1/8" x 26 Spline Input Shaft
• Holds Up To 1100 ft/lbs of Torque
• 168 Tooth R.Gear, 8 Bolt Crank, and
• 8.75" Dia for Track Use
• Solid Hub for Light Quick Shifts.
• Patented Multi-Disc Design

The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs.
