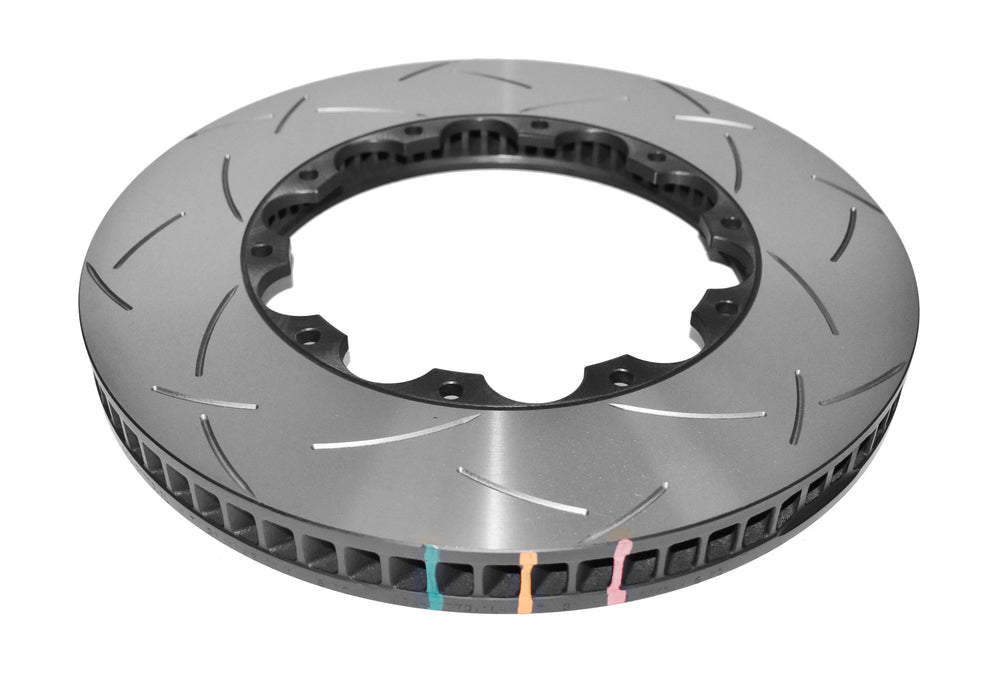

5000 Series T3 Front Brake Rotor Ring

The DBA 5000 Series T3 Slotted Rotor Ring is engineered for exceptional braking performance in demanding conditions. This direct replacement 2-piece performance brake rotor features DBA’s patented T3 bi-directional slot design, which includes additional precise CNC machined tri-symmetrical slots. This design enhances braking responsiveness and consistency by increasing the number of exit points for brake pad friction dust and gases. Constructed from high carbon alloyed cast iron rings combined with aerospace-grade aluminum hats (T6061-T6), this two-piece rotor is designed to reduce weight and improve heat management. The surface features symmetrical slots and curved vents for efficient expulsion of dust and gases, while an anti-rust painted coating on non-friction areas preserves appearance and longevity. The rotor has a 370 mm outer diameter, 34 mm height, 34 mm brake disc thickness, and a minimum thickness of 32 mm, with a 191 mm centering diameter and a 215 mm pitch circle diameter with 10 holes. This rotor ring is specifically designed to fit 2015–2019 Corvette C7 Grand Sport and Z06 models without the Z07 brake package, ensuring accurate compatibility. Installation is straightforward as it is a bolt-on design requiring no drilling, making it suitable for professional and experienced DIY installers. The product comes individually packaged as one brake rotor.
