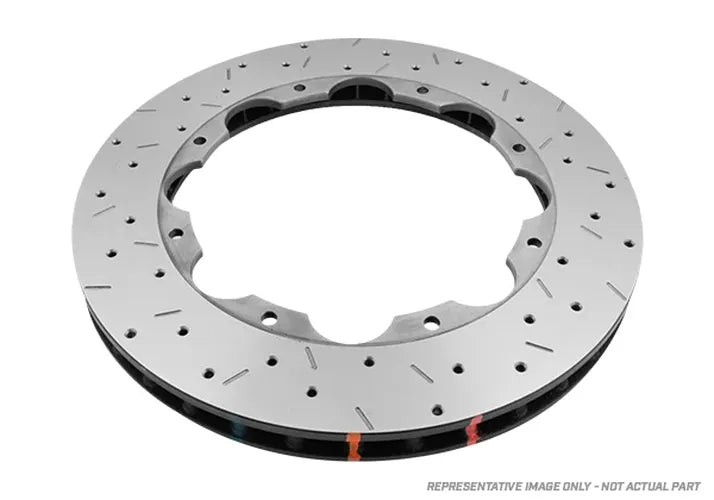

5000 Series XS Brake Rotor

The DBA 5000 Series XS brake rotor is a performance aftermarket component from Disc Brakes Australia, engineered to provide superior braking capabilities beyond standard OE levels. It undergoes a proprietary Thermal Stability Profiling (TSP) process, enabling the rotor to withstand higher heat and stress generated during intense braking applications. This rotor incorporates DBA's patented Kangaroo Paw ventilation system, which utilizes 144 diamond and teardrop-shaped pillars. Technically, the DBA5928.1XS is a vented rotor with a cross-drilled and slotted surface type. It has an outside diameter of 324mm, a nominal thickness of 30mm, and a discard thickness of 28mm. The center hole diameter is 166mm, and it features 12 stud/lug holes. The overall height is 30mm. This specific rotor ring is compatible with the 2003-2005 Infiniti G35. Fitment notes indicate that for the 2003 model, it applies to units manufactured from January 2002 to the end of 2003 and equipped with standard brakes. For the 2004 model, it is also for vehicles with standard brakes.
