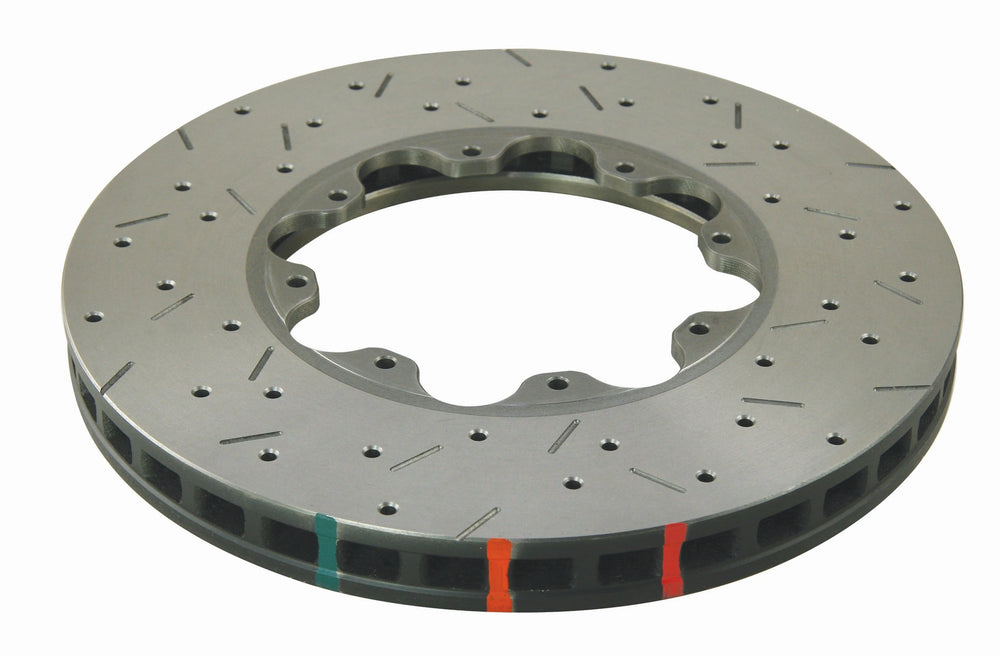

5000 Series XS Rotor Ring

The DBA 5000 Series XS brake rotor ring is engineered by Disc Brakes Australia, a leading manufacturer of performance aftermarket brake components. This rotor is designed as a direct replacement for drivers seeking to enhance their braking performance beyond standard OE specifications. Crafted from high carbon alloyed iron, it is subjected to Thermal Stability Profiling (TSP) to ensure it can withstand the significant stress and heat generated during demanding braking situations. This specific rotor incorporates DBA's patented Kangaroo Paw ventilation system, which utilizes 144 diamond and teardrop-shaped pillars. The surface type is drilled and slotted, further aiding in heat dissipation and debris removal for consistent performance. Key technical specifications include an outside diameter of 316mm, a nominal thickness of 30mm, and a discard thickness of 28mm. It is a vented rotor with a center hole diameter of 140mm and 8 lug holes. The rotors are a composite 2-piece design, combining high carbon cast-iron rings with aerospace-grade aluminum hats. Fitment notes indicate specific applications and exclusions. For the 2018 and 2021 Subaru WRX, this rotor excludes models with Eyesight Technology. Specific trims and model years are listed for the Subaru Legacy and Outback, including GT, GT Limited, GT spec.B, 3.0R, 3.6R, and models from 2005-2008, 2010, 2016, and 2010-2012 respectively. It is also compatible with various Subaru B9 Tribeca and Tribeca models from 2006-2014.
