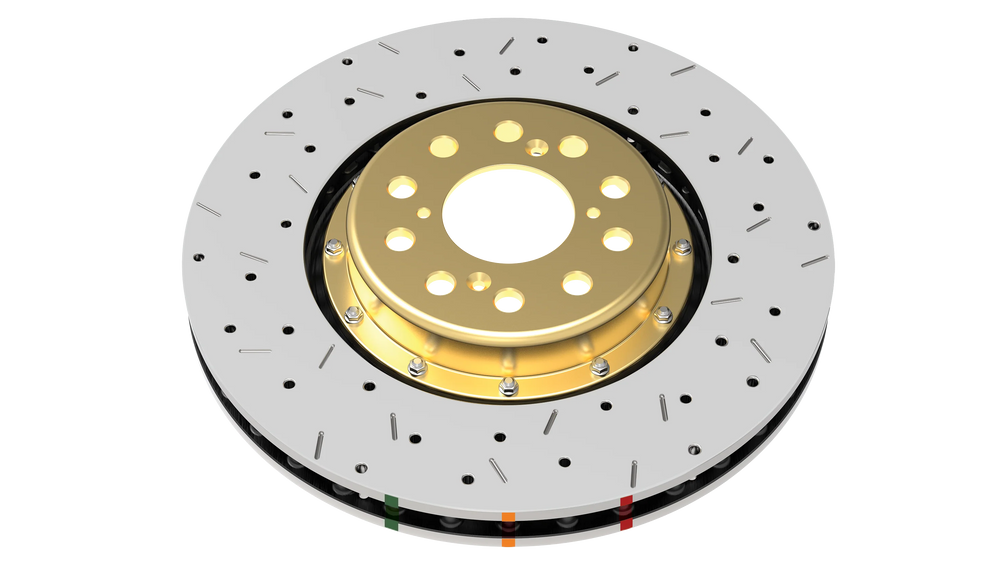

5000 Series XS Vented Drilled and Slotted Brake Rotor

The DBA 5000 Series XS brake rotor ring is a high-performance aftermarket component designed as a direct replacement for upgraded braking capabilities. Constructed from high carbon alloyed iron, these rotors are treated with Thermal Stability Profiling (TSP) to withstand the elevated temperatures and stresses encountered during intense braking applications. These rotors are vented and feature a drilled and slotted surface type for optimal performance and heat dissipation. Technical specifications include an outside diameter of 295mm, a nominal thickness of 25mm, and a discard thickness of 23mm. The center hole diameter is 146mm, and they have 12 lug holes. This specific rotor, DBA5010.1XS, is compatible with a range of Subaru, Scion, and Toyota models, including the 2003-2013 Subaru Forester, 2003-2013 Subaru BRZ, 2014 Scion FR-S, and 2018-2020 Toyota 86, among others. It is important to note specific fitment variations, such as exclusions for Brembo brakes on certain Subaru BRZ and Toyota 86 models, and specific date ranges for models like the 2010 Subaru Forester and 2002-2004 Subaru Legacy. This product is a single rotor ring; two are required to complete an axle.
