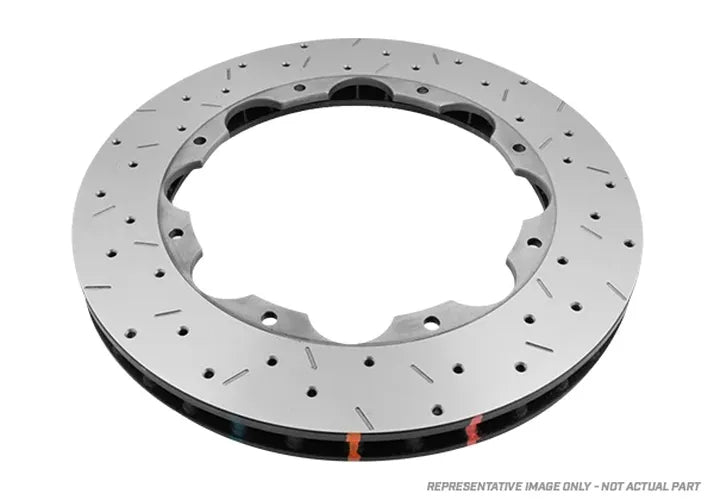

5000 Series XS Vented Drilled Slotted Brake Rotor

The DBA 5000 Series XS brake rotor is a high-performance upgrade designed to exceed standard OE braking levels. Manufactured by Disc Brakes Australia, this rotor is cast from high carbon alloyed iron and undergoes Thermal Stability Profiling (TSP) to withstand increased stress and heat from intense braking applications. The XS series features cross-drilled and slotted surfaces, combining both drilling and slotting for optimal performance. The cross-drilling helps dissipate heat and gases, while the slots provide a surface for pad cleaning and continuous venting. Key technical specifications for this front rotor include an outside diameter of 400mm, a nominal thickness of 34mm, and a discard thickness of 32mm. It features a vented rotor type and a 12-stud/lug hole quantity, with a center hole diameter of 216mm. The grade type is explicitly listed as 'Performance'. This DBA 5000 Series XS rotor is designed as a direct-fit replacement and is compatible with a wide range of 2021-2023 Dodge Challenger and Charger models, including various SRT Hellcat, Redeye, Scat Pack, and Jailbreak trims.
